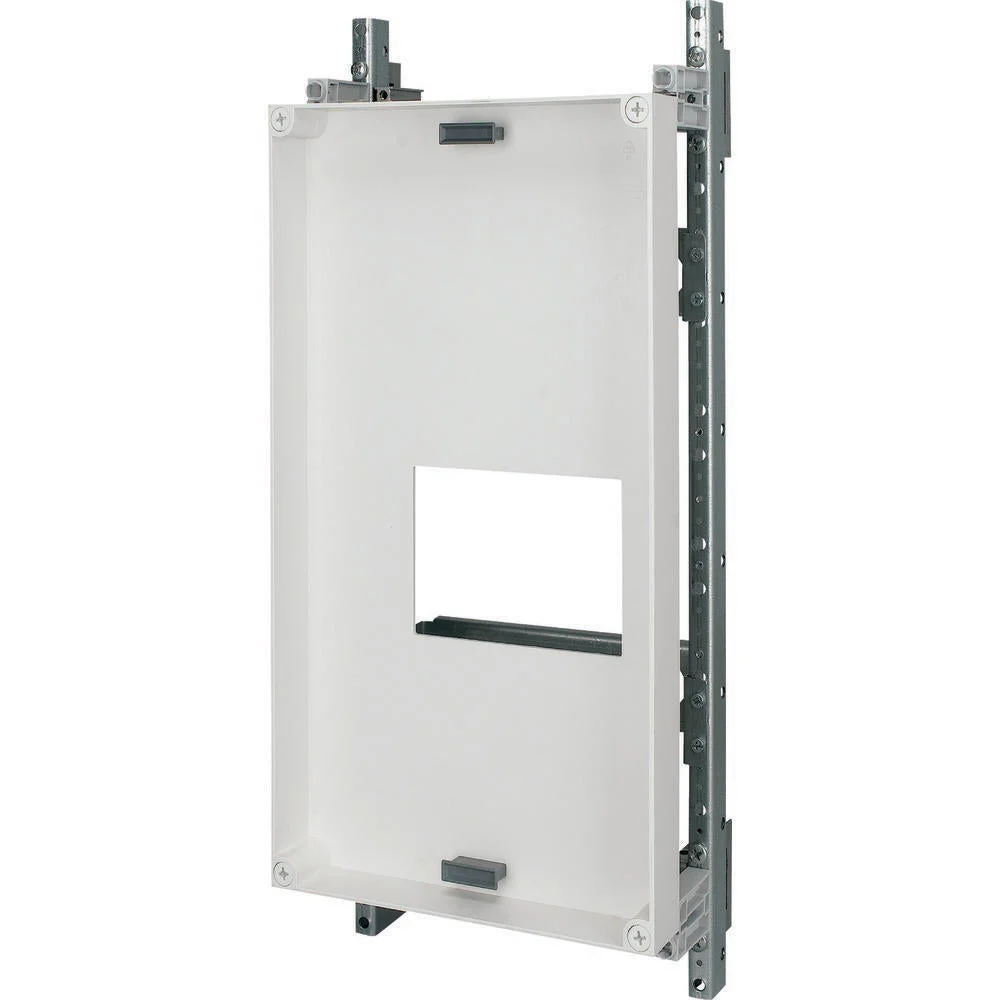

The Eaton Industries XBoard EP Flush-Mounting Unit is designed for surface installation of finished, type-tested switchgear assemblies. Crafted from steel, its dimension measures 500×190.5x750mm and features an installation depth of 190.5mm. The unit comes equipped with a cover and a mounting plate and has a module type mounting plate. It is intended for use with the NZM4 1600A Series 3/4P rotate cabinet.
Specifications
Height (mm) : 750
Width (mm) : 500
Depth (mm) : 60
With cover : Yes
Plastic cover plate : Yes
Number of poles : 4
Suitable for switch disconnector : Yes
Equipped with switch disconnector : No
Suitable for power circuit breaker : Yes
Equipped with power circuit-breaker : No
Suitable for no-voltage switch : No
Equipped with no-voltage switch : No
Suitable for reverser : No
Equipped with reverser : No
Rated operation current (A) : 1600
Number of switches : 1
With auxiliary terminal : No
