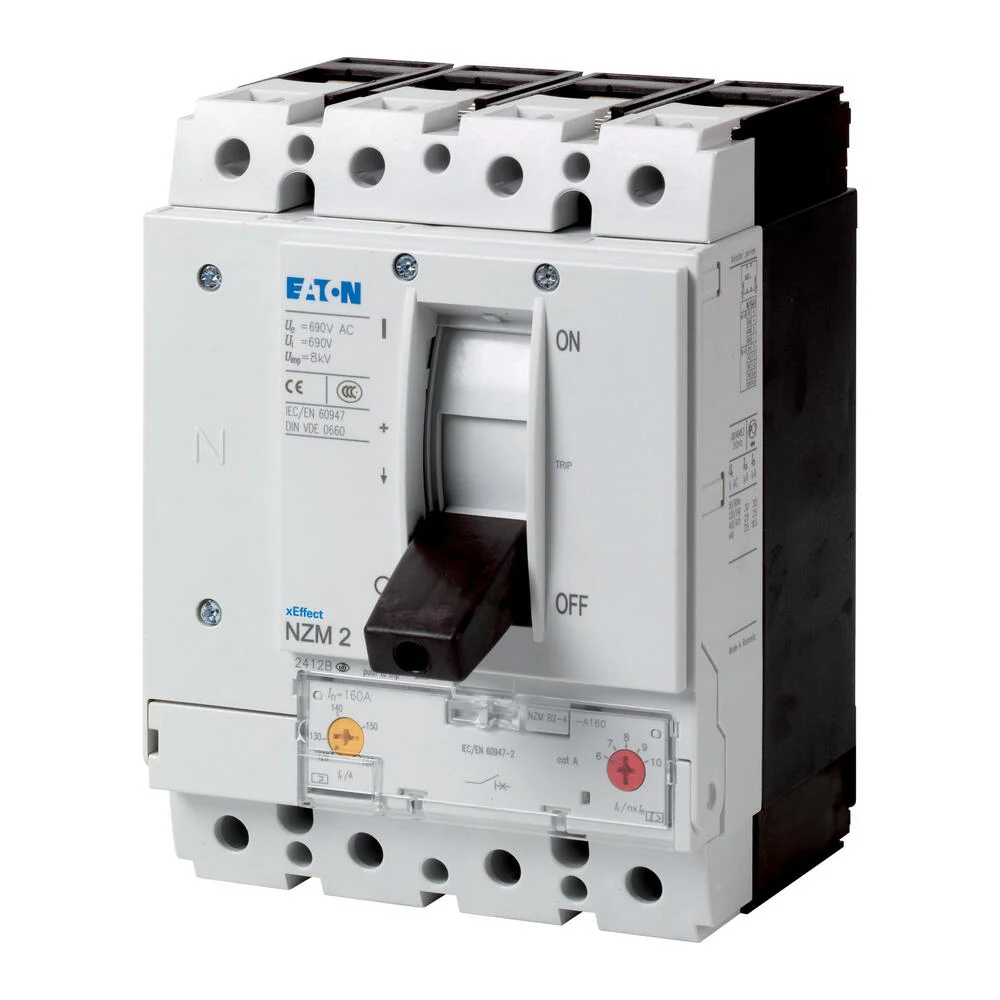

Eaton Circuit Breaker 4P 200A 125A NZMB2-4-A200/125 25KA IEC – 265853

The Eaton Industries NZMB A is a 4-pole circuit breaker with a rated uninterrupted current (In = Iu) of 200A and a nominal voltage of 440V. Its nominal interrupting capacity (Icu) at 400/415V, 50Hz is 25 kA. The NZMB A provides a setting range for overload protection between 160 – 200A and an immediate short circuit setting range of 1200 – 12000A. Designed to be a built-in fixed device, it features a screw connection. This unit is IEC standardized and serves a fundamental role in system and cable protection.

Specifications

Rated permanent current Iu (A) : 200
Rated voltage (V) : 440 V to 440 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA) : 25
Overload release current setting (A) : 160 A to 200 A
Adjustment range short-term delayed short-circuit release (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 1200 A to 12000 A
Integrated earth fault protection : No
Type of electrical connection of main circuit : Screw connection
Device construction : Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting : No
DIN rail (top hat rail) mounting optional : Yes
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
With switched-off indicator : No
With integrated under voltage release : No
Number of poles : 4
Position of connection for main current circuit : Front side
Type of control element : Rocker lever
Complete device with protection unit : Yes
Motor drive integrated : No
Motor drive optional : Yes
Degree of protection (IP) : IP20
