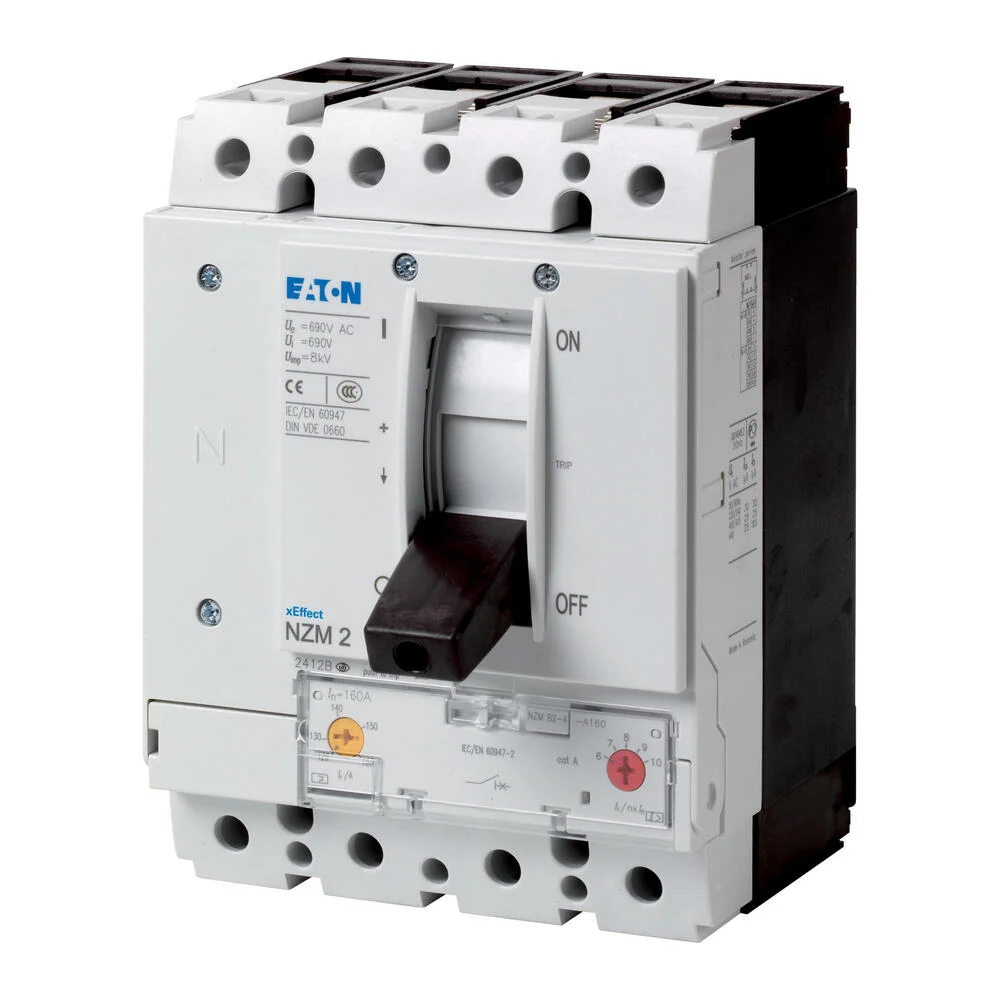

The Eaton Industries MCCB power circuit breaker is rated for a nominal continuous current (In = Iu) of 125A and a nominal voltage of 690V. Its nominal shutdown capacity (Icu) at 400V is 150kA. It has an overload protection setting range of 125A, a temporarily delayed short circuit setting range of 750 – 1250A, and an undelayed short circuit setting range of 6 – 10A. For the NZM2 model, the switching capacity is rated at SCCR 480Y/277V 60Hz (Icu) of 150kA, SCCR 600Y/347V 60Hz (Icu) of 50kA, and SCCR 480V 60Hz (Icu) of 100kA. The unit incorporates a box terminal and is designed for fixed installation. It complies with UL/CSA and IEC standards and its primary protective function is system and cable protection.
Specifications
Rated permanent current Iu (A) : 125
Rated voltage (V) : 690 V to 690 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA) : 150
Overload release current setting (A) : 125 A to 125 A
Adjustment range short-term delayed short-circuit release (A) : 750 A to 1250 A
Adjustment range undelayed short-circuit release (A) : 6 A to 10 A
Integrated earth fault protection : No
Type of electrical connection of main circuit : Frame clamp
Device construction : Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting : No
DIN rail (top hat rail) mounting optional : Yes
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
With switched-off indicator : No
With integrated under voltage release : No
Number of poles : 4
Position of connection for main current circuit : Front side
Type of control element : Rocker lever
Complete device with protection unit : Yes
Motor drive integrated : No
Motor drive optional : Yes
Degree of protection (IP) : IP20
