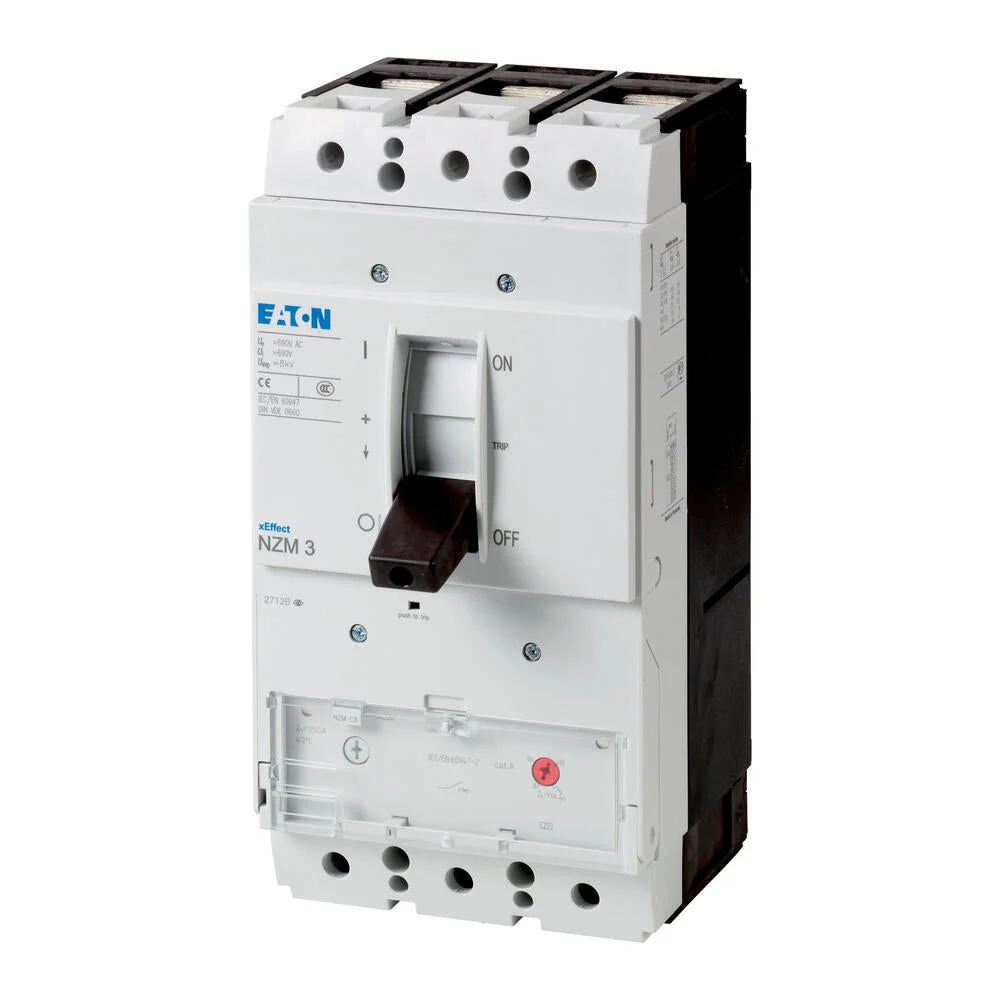

The Eaton Industries MCCB motor protection switch is a compact device with dimensions 140x166x275mm, designed for permanent inset use. It has a nominal continuous current Iu of 500A, connecting the main current circuit through a screw connection. The device uses magnetic switch-off technology and ensures protection with an IP rating of IP20. Its operating voltage is 690V. This switch is highly versatile, covering all applications in just four compact sizes, making it suitable for the IEC market. It features a magnetic short-circuit release in conjunction with an overload relay, and a short-circuit release without overload trip. The switch fulfills all requirements of the AC-3 switching category.
Specifications
Overload release current setting (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 6 A to 10 A
With thermal protection : No
Phase failure sensitive : No
Switch off technique : Magnetic
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 500
Rated operation power at AC-3, 230 V (kW) : 160
Rated operation power at AC-3, 400 V (kW) : 250
Type of electrical connection of main circuit : Screw connection
Type of control element : Rocker lever
Device construction : Built-in device fixed built-in technique
With integrated auxiliary switch : No
With integrated under voltage release : No
Number of poles : 3
Rated short-circuit breaking capacity lcu at 400 V, AC (kA) : 35
Degree of protection (IP) : IP20
Height (mm) : 275
Width (mm) : 140
Depth (mm) : 166
