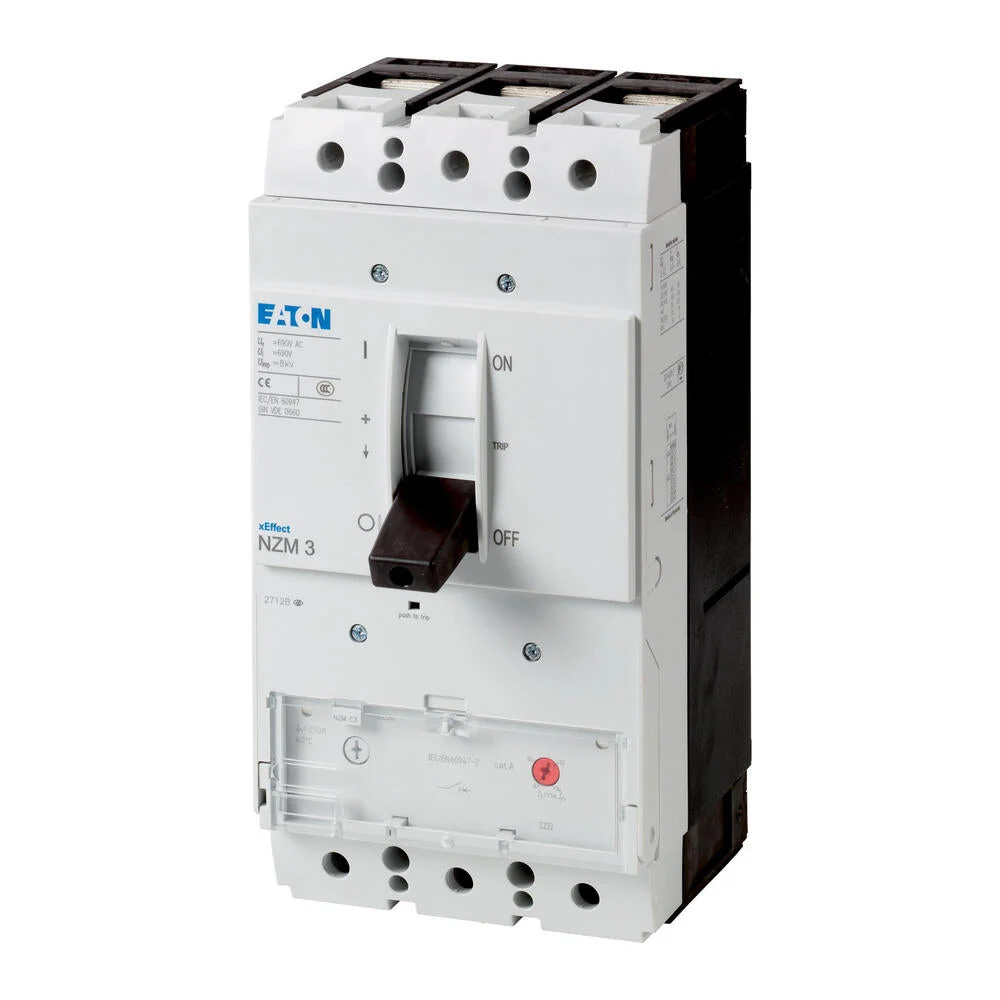

The Eaton Industries MCCB circuit-breaker, with dimensions of 140x166x275mm, is a built-in device with a fixed setup. It operates with a nominal continuous current Iu of 500A and uses screw connection for the main current circuit. The disconnecting technology is magnetic and it features an IP20-degree of protection. Its operating voltage is 690V. This compact circuit-breaker, available in four sizes, is suitable for the IEC market. It offers flexible mounting due to its modular function groups. The device comes with a magnetic short-circuit release in combination with an overload relay and a short-circuit release without an overload trip. The circuit-breaker meets all requirements of the switching category AC-3.
Specifications
Overload release current setting (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 6 A to 10 A
With thermal protection : No
Phase failure sensitive : No
Switch off technique : Magnetic
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 500
Rated operation power at AC-3, 230 V (kW) : 160
Rated operation power at AC-3, 400 V (kW) : 250
Type of electrical connection of main circuit : Screw connection
Type of control element : Rocker lever
Device construction : Built-in device fixed built-in technique
With integrated auxiliary switch : No
With integrated under voltage release : No
Number of poles : 3
Rated short-circuit breaking capacity lcu at 400 V, AC (kA) : 130
Degree of protection (IP) : IP20
Height (mm) : 275
Width (mm) : 140
Depth (mm) : 166
