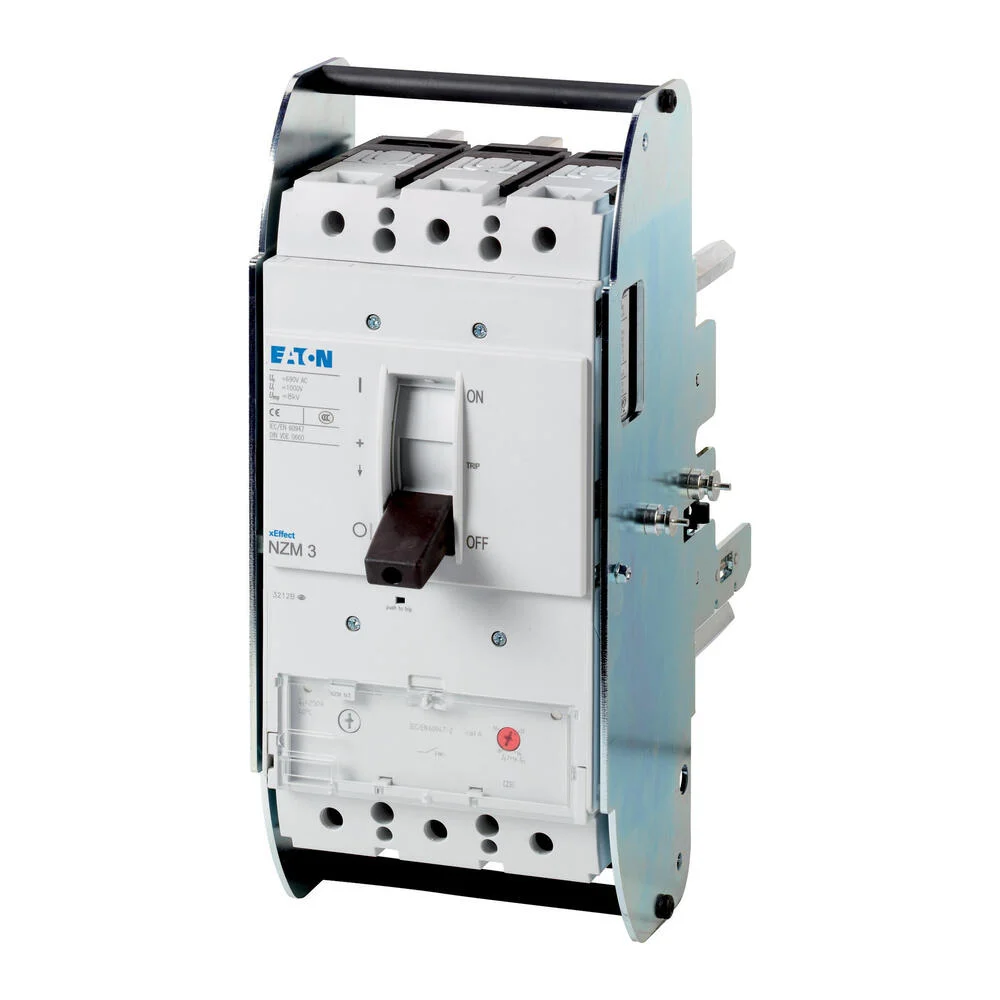

The Eaton Industries MCCB circuit-breaker, with dimensions of 185x346x260mm, is a built-in device with a screw connection for the main current circuit. It has a nominal continuous current Iu of 400A and uses magnetic interruption technology. It features a protection degree of IP20 and an operating voltage of 690V. This circuit breaker is a part of the NZM..-S series which offers flexibility in mounting due to modular function groups. It comes with a magnetic short-circuit release in connection with an overload relay, and also has a short-circuit release without overload trip. Moreover, it adheres to all the requirements of the AC-3 switching category.
Specifications
Overload release current setting (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 7 A to 44328 A
With thermal protection : No
Phase failure sensitive : No
Switch off technique : Magnetic
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 400
Rated operation power at AC-3, 230 V (kW) : 132
Rated operation power at AC-3, 400 V (kW) : 200
Type of electrical connection of main circuit : Screw connection
Type of control element : Rocker lever
Device construction : Built-in device slide-in technique (withdrawable)
With integrated auxiliary switch : No
With integrated under voltage release : No
Number of poles : 3
Rated short-circuit breaking capacity lcu at 400 V, AC (kA) : 22.5
Degree of protection (IP) : IP20
Height (mm) : 260
Width (mm) : 185
Depth (mm) : 346
