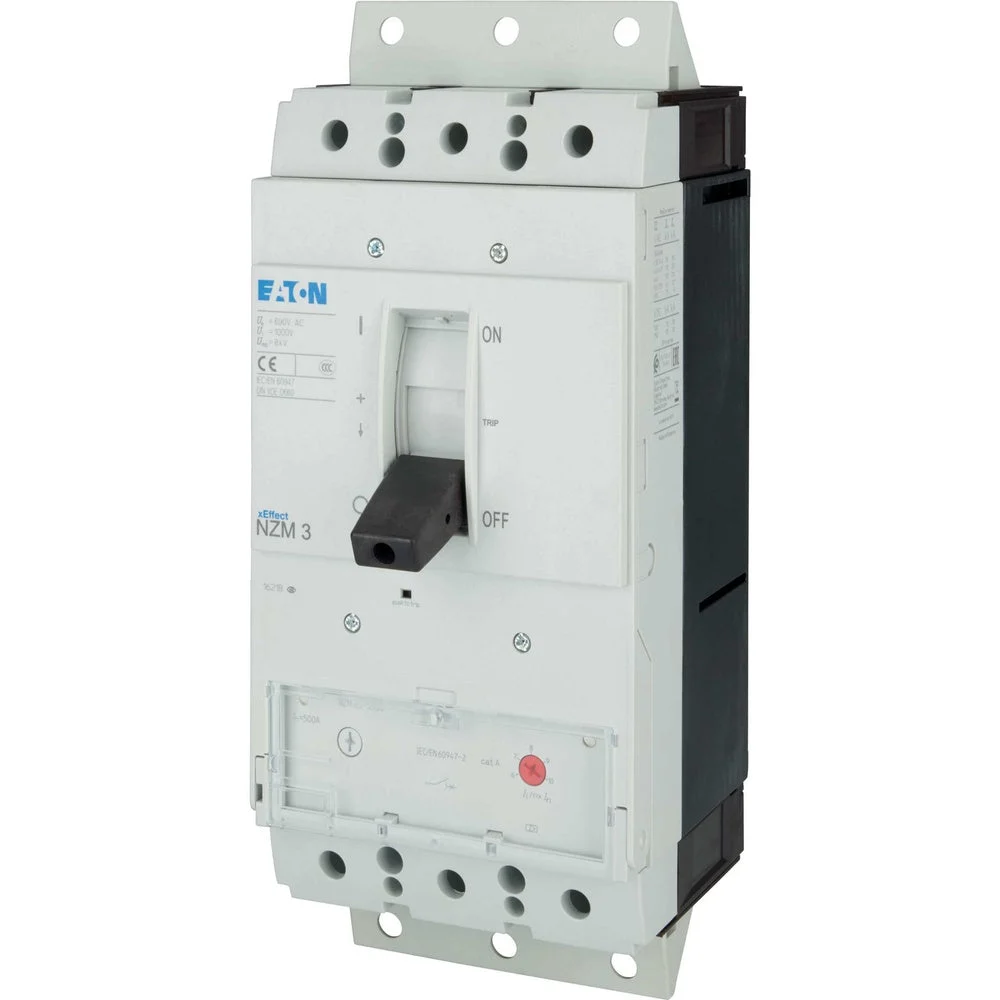

The Eaton Industries MCCB motor protection switch, with dimensions of 140x335x215.2mm, is designed as an insertable device for equipment construction. It offers a nominal continuous current Iu of 320A and utilizes a screw connection for the main circuit. The switch-off technology is magnetic and it boasts an IP20 degree of protection. The operating voltage is 690V. Meanwhile, the NZM series circuit breakers are suitable for the IEC market offering flexibility in installation through the use of modular function groups and cover a wide range of applications in just four compact sizes.
Specifications
Overload release current setting (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 8 A to 14 A
With thermal protection : No
Phase failure sensitive : No
Switch off technique : Magnetic
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 320
Rated operation power at AC-3, 230 V (kW) : 90
Rated operation power at AC-3, 400 V (kW) : 160
Type of electrical connection of main circuit : Screw connection
Type of control element : Rocker lever
Device construction : Built-in device plug-in technique
With integrated auxiliary switch : No
With integrated under voltage release : No
Number of poles : 3
Rated short-circuit breaking capacity lcu at 400 V, AC (kA) : 36
Degree of protection (IP) : IP20
Height (mm) : 215.2
Width (mm) : 140
Depth (mm) : 335
