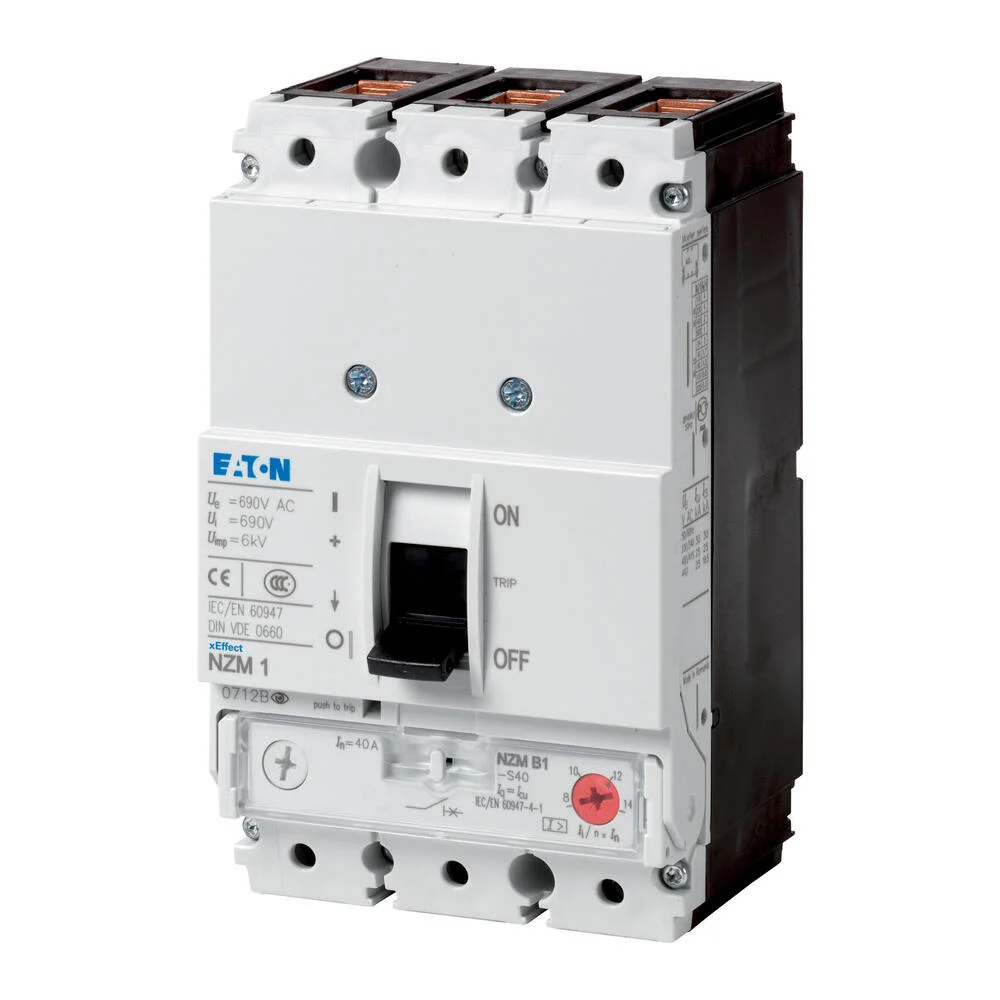

The Eaton Industries MCCB Motor Protection circuit-breaker, measuring 90x88x165.5mm, is a built-in device with a nominal continuous current of 2A. Its connection method is unique, featuring a magnetic switch-off technique and an IP20 degree of protection. It operates at a voltage of 440V. The NZM..-S..CNA series of circuit-breakers are compact but versatile, suitable for worldwide use. These are easily mountable due to their modular function groups and come equipped with a magnetic short-circuit release, along with an overload relay. However, the short-circuit release lacks an overload trip. For compliance, these switches conform to UL/CSA and IEC regulations, as indicated on the IEC switching performance values on the rating plate.
Specifications
Overload release current setting (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 12 A to 22 A
With thermal protection : No
Phase failure sensitive : No
Switch off technique : Magnetic
Rated operating voltage (V) : 440 V to 440 V
Rated permanent current Iu (A) : 2
Rated operation power at AC-3, 230 V (kW) : 0.37
Rated operation power at AC-3, 400 V (kW) : 0.75
Type of electrical connection of main circuit : Other
Type of control element : Rocker lever
Device construction : Built-in device fixed built-in technique
With integrated auxiliary switch : No
With integrated under voltage release : No
Number of poles : 3
Rated short-circuit breaking capacity lcu at 400 V, AC (kA) : 25
Degree of protection (IP) : IP20
Height (mm) : 165.5
Width (mm) : 90
Depth (mm) : 88
