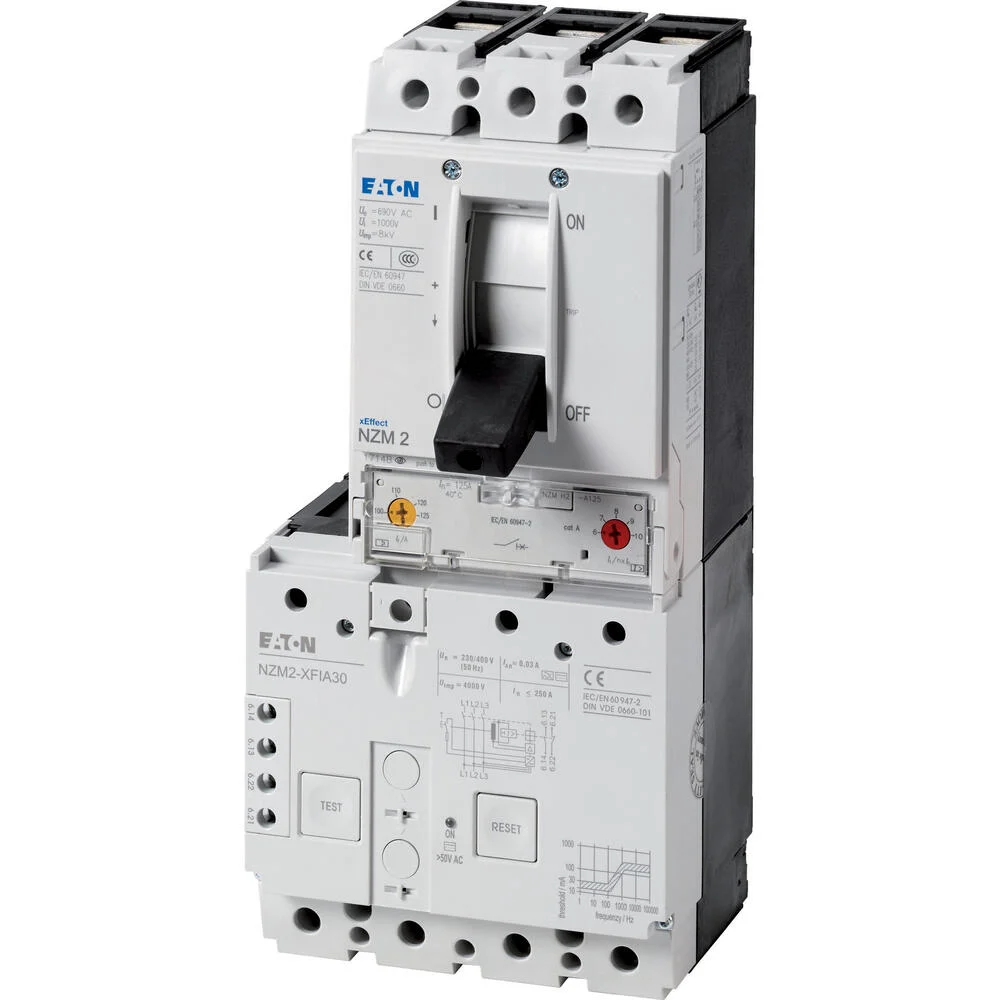

The Eaton Industries MCCB Circuit-breaker NZM2 is a three-pole device with a nominal continuous current (Iu) of 160A and a nominal voltage of 400V. Its switching capacity at 400/415 V 50 Hz (Icu) is 150 kA. The device has adjustable overload protection settings between 125 and 160A, and adjustable immediate short circuit settings between 960 and 1600A. It is a built-in, fixed installation device with box terminals. Equipped with system and cable protection, fire protection, and personnel protection functionalities, it complies with IEC standards.
Specifications
Rated permanent current Iu (A) : 160
Rated voltage (V) : 400 V to 400 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA) : 150
Overload release current setting (A) : 125 A to 160 A
Adjustment range short-term delayed short-circuit release (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 960 A to 1600 A
Integrated earth fault protection : No
Type of electrical connection of main circuit : Frame clamp
Device construction : Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting : No
DIN rail (top hat rail) mounting optional : Yes
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
With switched-off indicator : No
With integrated under voltage release : No
Number of poles : 3
Position of connection for main current circuit : Front side
Type of control element : Rocker lever
Complete device with protection unit : Yes
Motor drive integrated : No
Motor drive optional : Yes
Degree of protection (IP) : IP20
