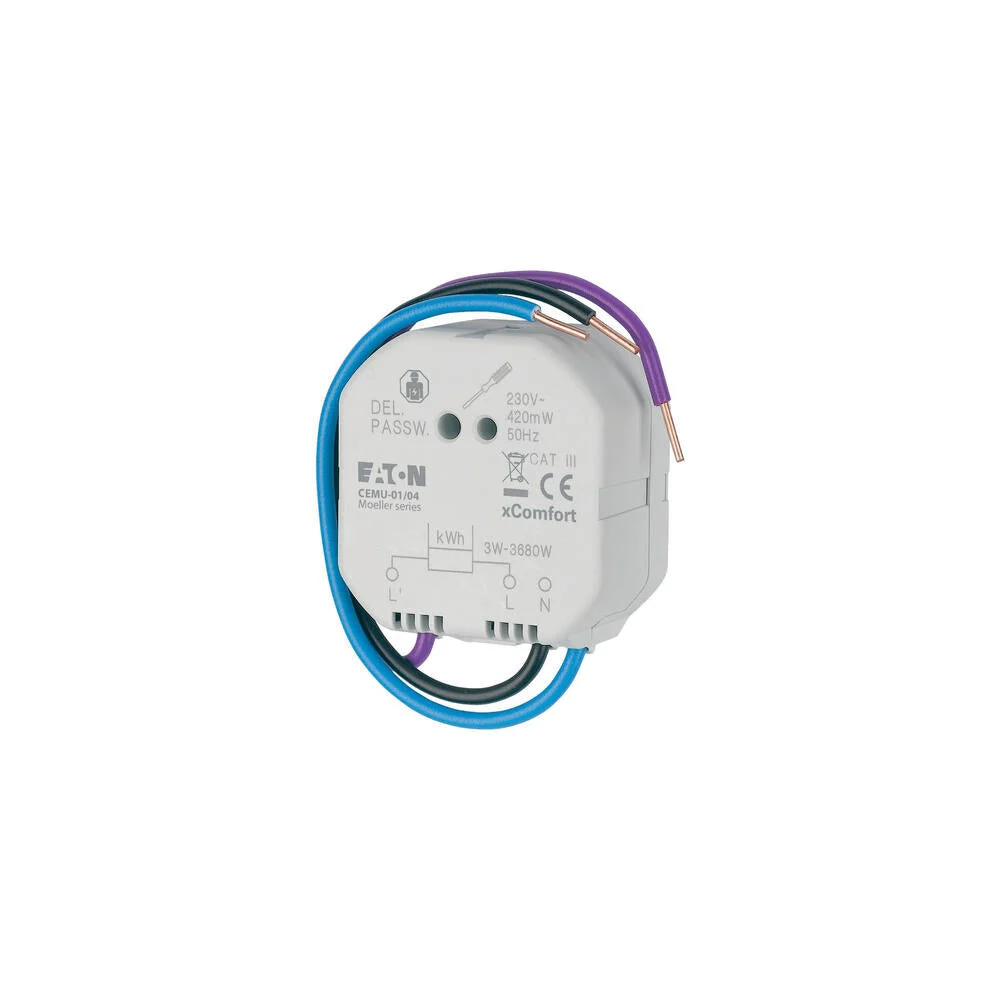

The Eaton Industries XComfort Energy Management Bus System connects directly and operates using radio frequency and Powerline. It supports xComfort and bidirectional radio frequency. The device requires a minimum installation box depth of 26mm. The zenergy measuring sensor records the solar energy collected and transferred to a room-manager display. It is suitable for devices with higher outputs between 3 and 3680 kW and reports on current, voltage, active power and electrical energy. It is best connected to the electric system’s feed point and installed in switch, junction or installation boxes. Be aware that it is not suitable for billing due to not being sealed and it is not compatible with xComfort Bridge.
Specifications
Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : Yes
Bus system LON : No
Bus system Powernet : Yes
Other bus systems : xComfort
Radio frequent bidirectional : Yes
Model : Other
Connection type : Direct
Reactive power : No
Approved according to PTB : No
S0 impulse interface : None
Tariff switch : No
Accuracy class : 0
Min. depth of built-in installation box (mm) : 26
