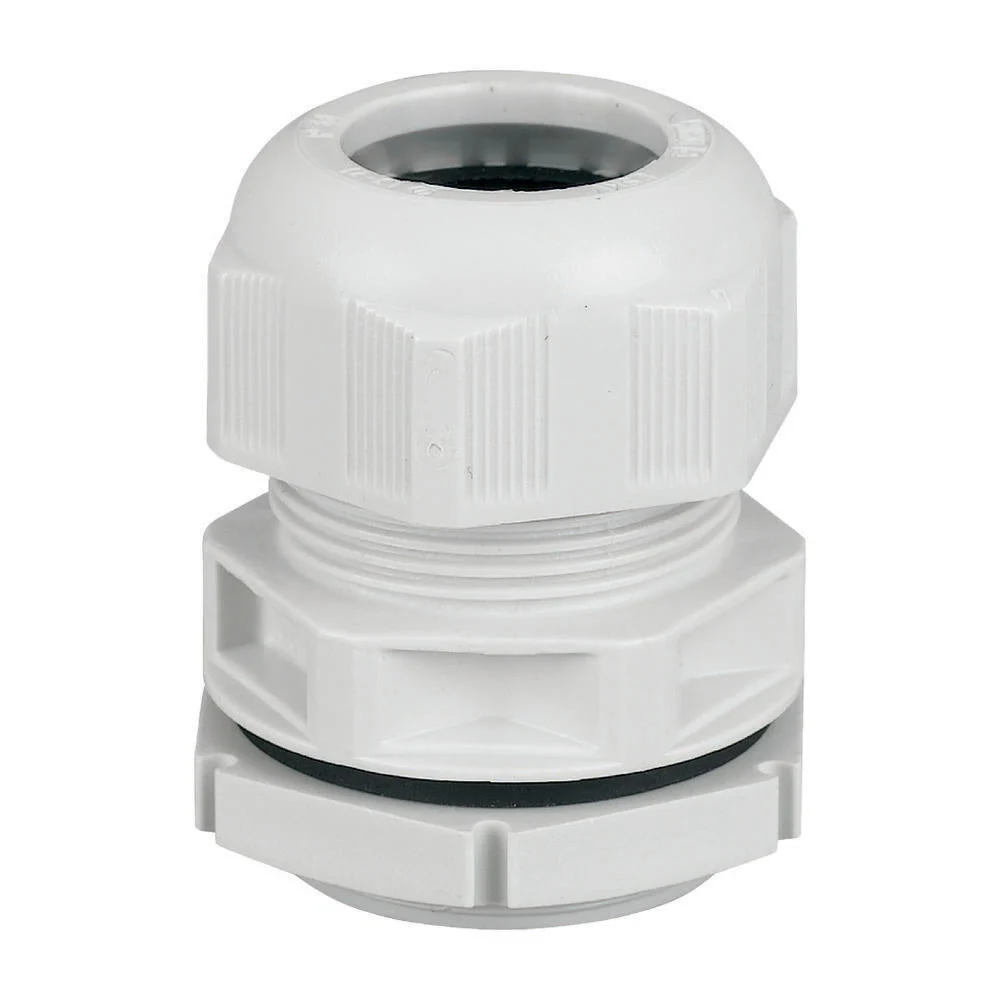

This is an Eaton Industries cable gland, suitable for a cable diameter of 21 – 35mm. It is designed with straight cable or pipe entry, made of grey polyamide plastic. The gland type thread is metric with a nominal metric thread size/Pg of 50 and other nominal thread size in inch NPT/gas pipe. It features a thread pitch of 1.5mm and a thread length of 14mm. The wrench width is 55mm. The drilling dimensions are 50.5mm and it is suitable for utilization with NYM/NYY cables. This halogen-free gland offers a protection degree of IP68 up to 5 bar for 30 minutes and comes with a lock nut and inbuilt strain relief. The flammability classification is V2 according to UL94. The color is RAL 7035.
Specifications
Thread type : Metric
Nom. thread size metric/PG : 50
Nom. thread size inch/gas pipe thread : Other
Pitch thread (mm) : 1.5
Thread length (mm) : 14
Wrench width (mm) : 55
Hexagon angular dimension (mm) : 0
