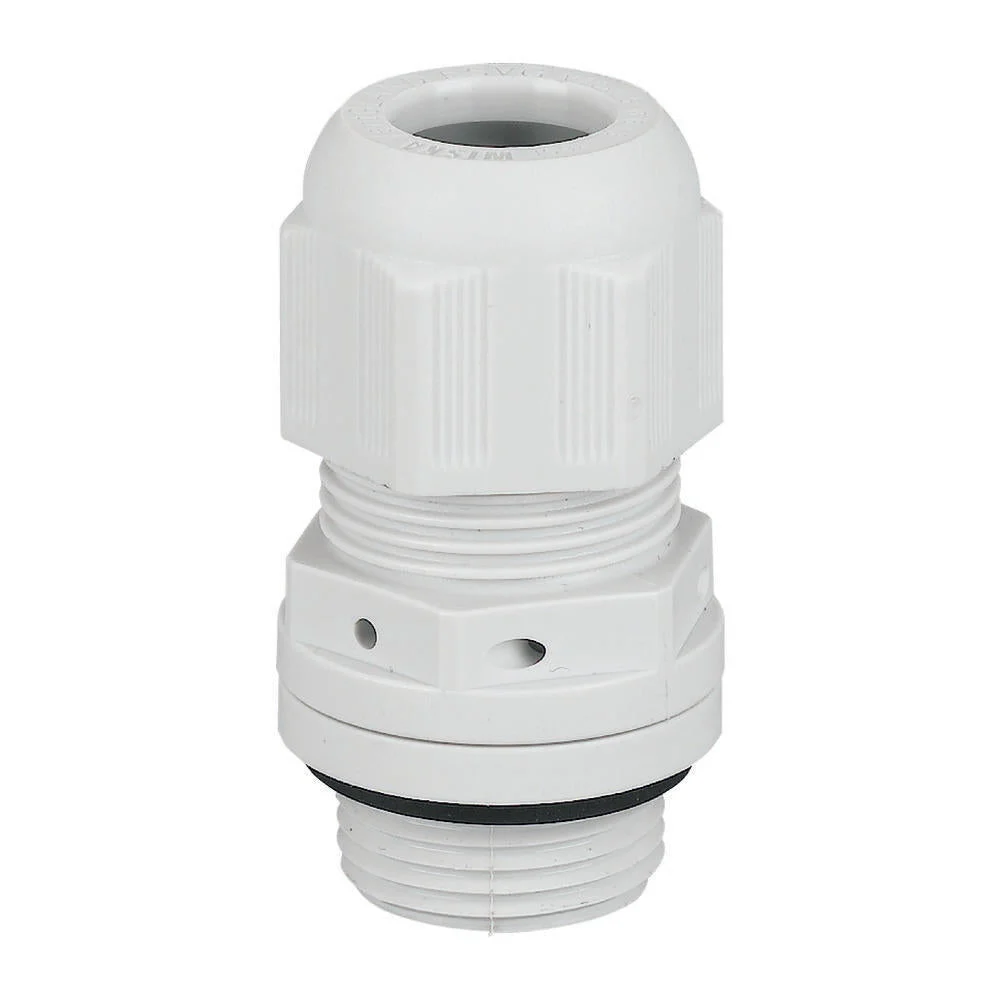

This item is an Eaton Industries Switchgear cable gland, straight in design and grey in color, made of plastic. This model is notable for its metric screw thread type, along with a nominal thread size of metric/Pg 20 and an alternative nominal thread size in inch NPT/gas pipe. The pitch of the thread is 15mm, while the thread length is 10mm. This cable gland is suitable for a cable diameter of 6 – 13mm, with a spanner size of 30mm. Additionally, the product features an integrated pressure equalization system, with a cable entry of M20 and drilling dimensions of 20.5mm. It can accommodate NYM/NYY-type, 4-wire cables such as H05VV-F4x2.5/3×4, and NYM 5×1.5/5×2.5mm². It has a degree of protection rated as IP68 and is made of halogen-free polyamide, which complies with RAL 7035 standards. It includes a lock nut and built-in strain relief system, with a flammability classification V2 according to UL94.
Specifications
Thread type : Metric
Nom. thread size metric/PG : 20
Nom. thread size inch/gas pipe thread : Other
Pitch thread (mm) : 15
Thread length (mm) : 10
Wrench width (mm) : 30
Hexagon angular dimension (mm) : 0
