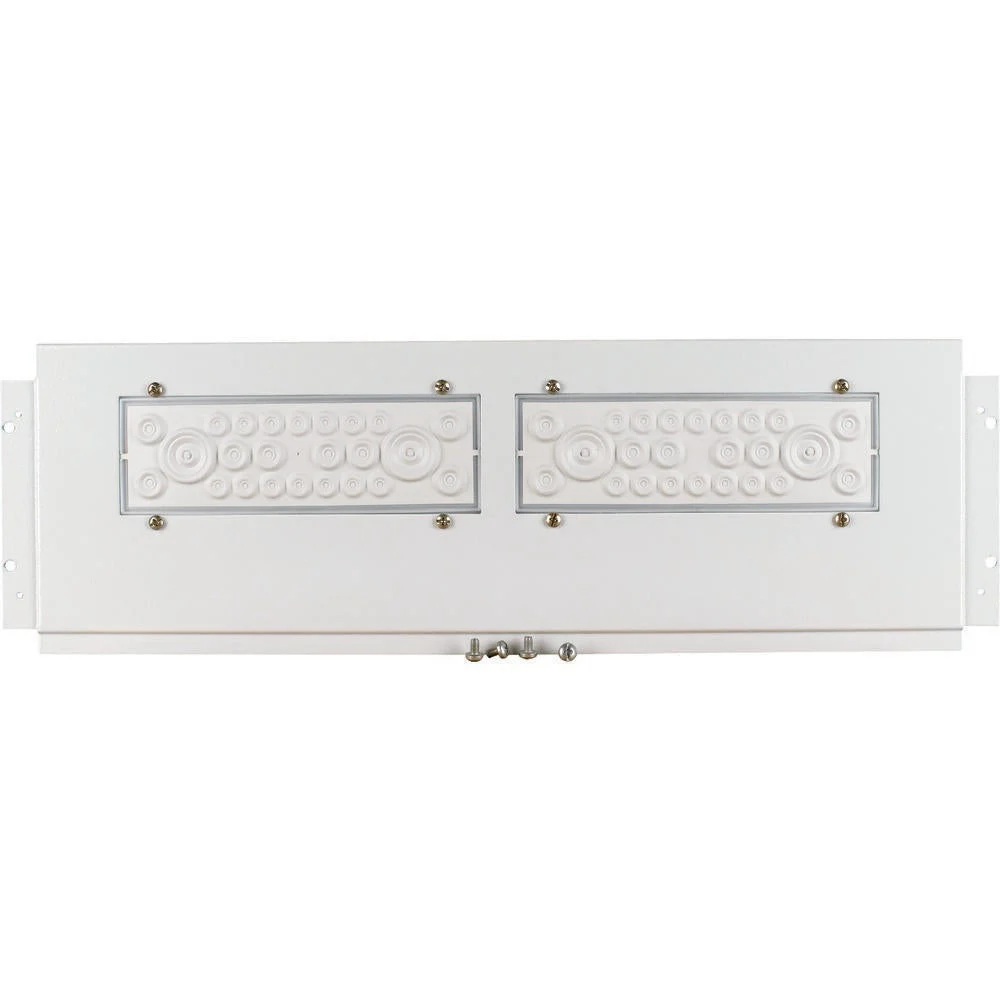

The Eaton Industries XBoard BP input flange plate is designed for cabinet/desk installation. Made from steel and coated with powder for added protection, this plate measures 175x945x20mm and is designed with a membrane style, as well as punch-out ports. It features a straight design with 24 connector holes and is suitable for metric/Pg 10 – 28 wire sizes. Its protective grade conforms to NEMA standards. The plate comes pre-assembled and can be installed in BP-TBP-…-CE top/bottom panels and is also suitable for the assembly of floor-standing distribution boards with a protection degree of IP30. It includes various mounting accessories.
Specifications
Model : Membrane
Type : Straight
Width (mm) : 945
Height (mm) : 20
Depth (mm) : 175
Material : Steel
Surface protection : Powder coating
Degree of protection (NEMA) : Other
Pre-stamping : Yes
Number of connector holes : 24
Thread type : None
Suitable for nominal thread metric/PG : 10 to 28
