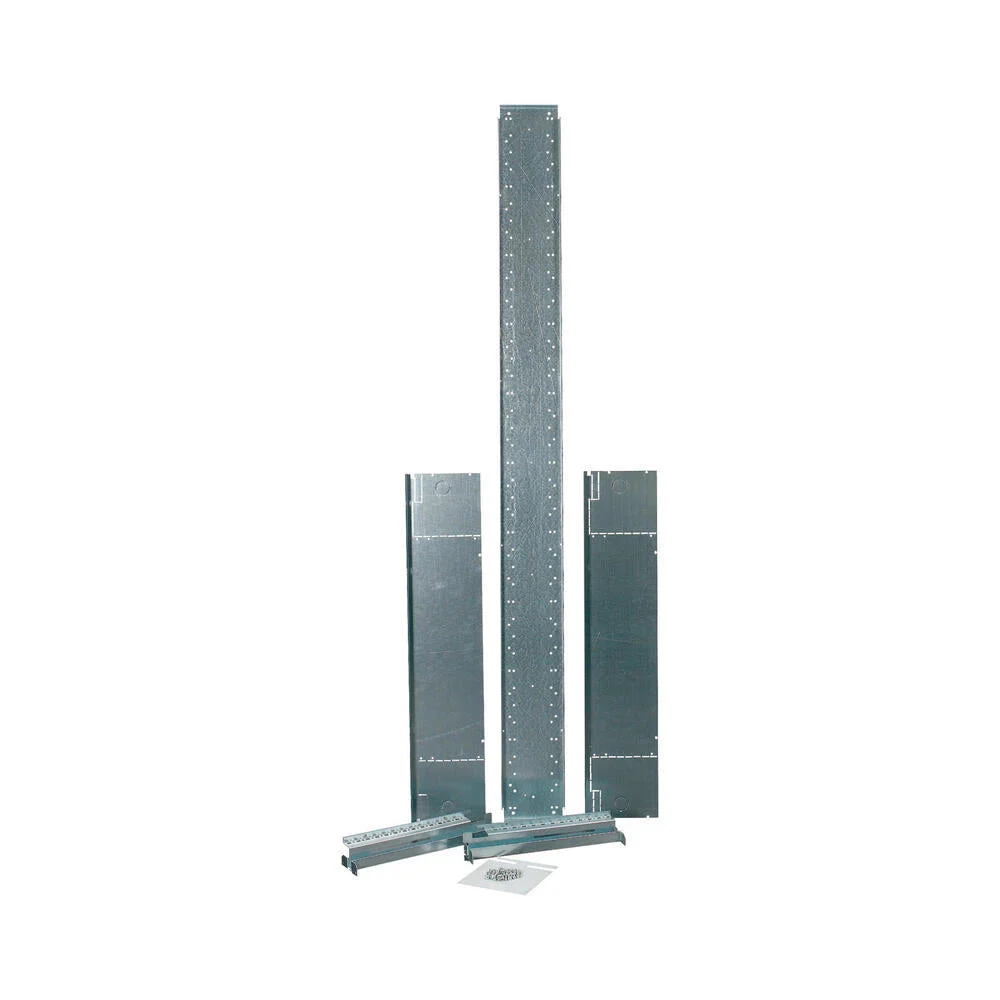

Eaton Cable Channel Mounting Plate 1000x400mm For XPFBCB397 – 158609

The Eaton Industries XEnergy accessory is designed for outgoer sections and includes a mounting plate/partition for cable connection areas. This particular accessory fits NZM outgoer section shape 2/4, with a section width of 1000 mm, a device space width of 600 mm, and a cable connection area width of 397 mm. It’s used for fixing terminals/contact blocks and also serves as a partition between the cable connection area and the main busbar area. Notably, it’s indispensable for outgoing feeders in a 5000 A system for additional main busbar area.

Specifications

Modular spacing (mm) : 12.5
Suitable for enclosure building width (mm) : 1000
Suitable for enclosure building depth (mm) : 600
Width (mm) : 1
Height (mm) : 40
Material : Steel
Surface finishing : Galvanized
Color : Stainless steel
RAL-number : 0
With cable entry : No
Number of height units : 0
With lock : No
Construction type : Individual part
For internal separation form 2a : Yes
For internal separation form 2b : Yes
For internal separation form 3a : Yes
For internal separation form 3b : Yes
For internal separation form 4a : Yes
For internal separation form 4b : Yes
