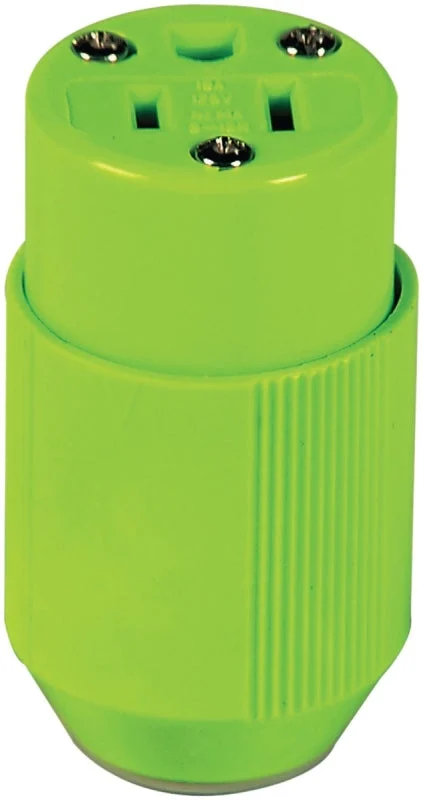

Highly visible and easy-to locate at the job sight. Molded out of impact and chemical-resistant nylon. Neoprene gasket seals cord opening to protect against moisture, dirt, wood chips and more. Temperature rating of -40 to 75 deg C. 15 A. UL 498 listed (file #E15012), CSA Certified C22.2 #42 (file #2081) (6221-02) NOM Certified. NEMA 5-15. Carded.
Unit: EA
UPC: 032664577512
Model Number: BP3487-4GN
Features
- Terminal screw clamps are designed to contain wire and prevent binding
- Terminal screws backed out ready for wiring
- High-visibility products for quick location and identification of plugs in the middle of a jobsite
- High-visibility product contains neoprene dust cover which prevents dust from entering the plug or connector at the cable entrance
- Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
Additional Information
- Cable/Wire Size: 1/4 to 21/32
- Color: Fluorescent Green
- Current Rating: 15
- Dimensions: 1.83 in L x 1.38 in W
- Grounding Type: Grounded
- Material: Nylon
- Mounting Type: Plug
- NEMA Configuration: NEMA 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -40 to 75
- Type: High-Visibility Straight
- Voltage Rating: 125
