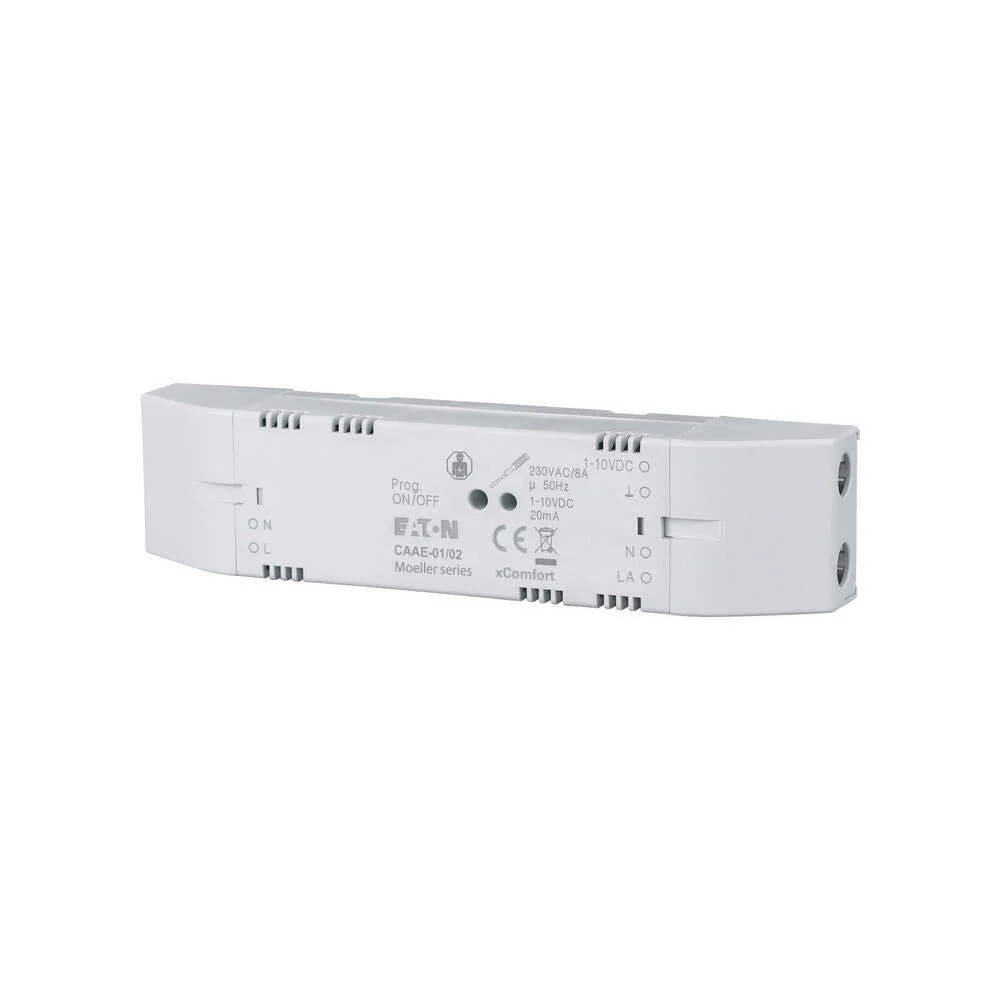

The Eaton Industries XComfort analog actuator bus system is a base module variant with one output and is compatible with other XComfort bus systems. It has an IP protection degree of IP20 and a width of 2 module units. The bus system operates on a radio frequency and includes a bus connection. It comes with an LED indicator and an output current of 20mA. The output voltage ranges between 1 – 10V. The actuator receives and switches a relay, controlling a 1-10VDC control voltage for dimmers and Electronic Ballast devices for fluorescent lamps. The supply is via mains power. It can be mounted in the installation box, intermediate ceiling, or directly in the fluorescent lamps.
Specifications
Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : Yes
Bus system LON : No
Bus system Powernet : No
Other bus systems : xComfort
Mounting method : Other
Width in number of modular spacings : 2
Model : Base module
With LED indication : Yes
With bus connection : Yes
Number of outputs : 1
Output current (mA) : 20 mA to 20 mA
Output voltage (V) : 1 V to 10 V
Degree of protection (IP) : IP20
Min. depth of built-in installation box (mm) : 0
