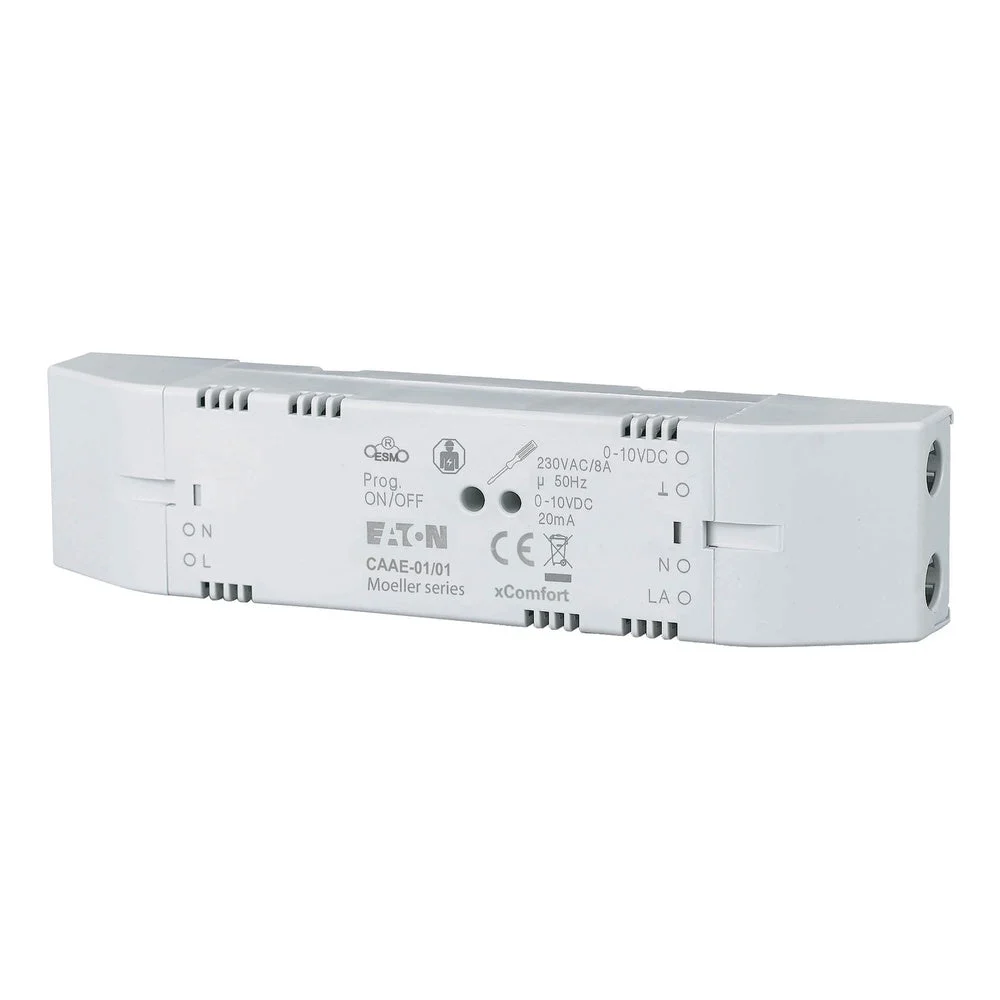

The Eaton Industries XComfort analog actuator is a base module bus system with one output and a protection degree of IP20. It operates with other xComfort bus systems by receiving and switching a relay and providing an output voltage of 0-10V, suitable for end devices such as mixers, heating systems, ventilation, dimmers, and more. With an output current of 20mA, LED indication, and a width in module units of 2, it’s adaptable for use in an installation box, intermediate ceiling, or directly in the devices. The supply is performed via the mains.
Specifications
Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : Yes
Bus system LON : No
Bus system Powernet : No
Other bus systems : xComfort
Mounting method : Other
Width in number of modular spacings : 2
Model : Base module
With LED indication : Yes
With bus connection : Yes
Number of outputs : 1
Output current (mA) : 20 mA to 20 mA
Output voltage (V) : 0 V to 10 V
Degree of protection (IP) : IP20
Min. depth of built-in installation box (mm) : 0
