Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Redesigned paddle. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL Listed, Meets all UL20 requirements, file # E18704. Carded.
Unit: CD
UPC: 032664644184

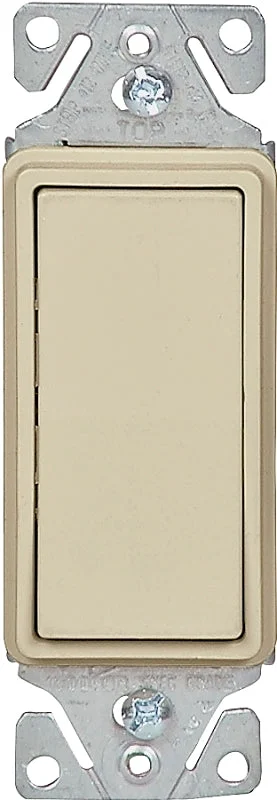

Model Number: C7501V-SP
Features
- Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
- Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
- Push-in terminals accept #14 AWG solid wire for quick installation
- Stippled ground screw terminal standard
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
- Tri-combo screws accept Slotted, Phillips and Robertson-head tools for installation flexibility
- Lighted switches glow in OFF position
- Redesigned paddle for easier actuation and quiet operation
Additional Information
- Color: Ivory
- Contact Configuration: SPST
- Current Rating: 15 A
- Dimensions: 4.19 in L x 1.44 in W x 0.97 in D
- Housing Material: Thermoplastic
- Includes: (1) Metal Strap
- Mounting Type: Strap
- Temperature Rating: -20 to 60 deg C
- Terminal Type: Lead Wire
- Voltage Rating: 120/277 V
Application: For fluorescent lighting fixtures and a broad variety of applications
