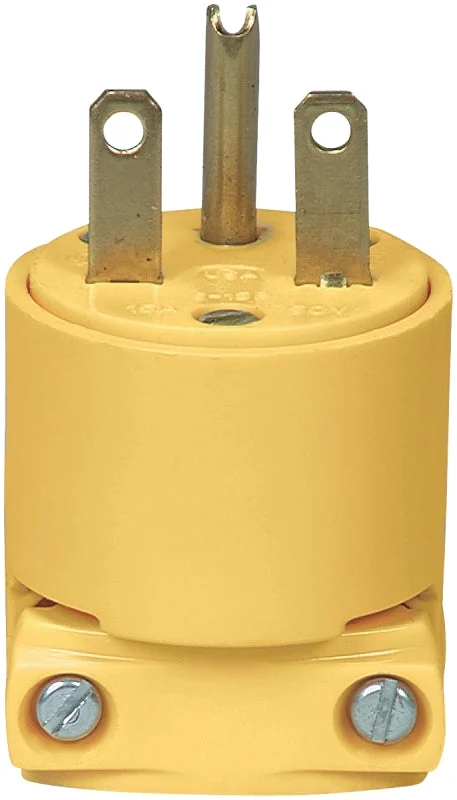

Solid brass plug blades are firmly embedded in body. Resists chemical attack and is less brittle in extremely low temperatures. With terminal screw clamps. Combination Slot/Phillips head mounting and terminal screws for installation flexibility (Slot/Robertson screws in Canada where available). Terminal screws backed out, ready for wiring. Yellow color. Meets all UL 498 requirements.
Unit: EA
UPC: 032664340802
Model Number: 4866-BOX
Features
- Solid brass plug blades are firmly embedded in body
- Terminal screw clamps are designed to contain wire and prevent binding
- Terminal screws backed out ready for wiring
- Terminals in individual chambers to positively insulate conductors
- Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
Additional Information
- Cable/Wire Size: 1/4 to 21/32 in
- Color: Yellow
- Connection Type: Screw
- Current Rating: 15 A
- Dimensions: 1.65 in L x 1.54 in W
- Grounding Type: Grounded
- Material: Thermoplastic/Vinyl
- NEMA Configuration: NEMA 6-15
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 60 deg C
- Type: Straight Blade
- Voltage Rating: 250 V
