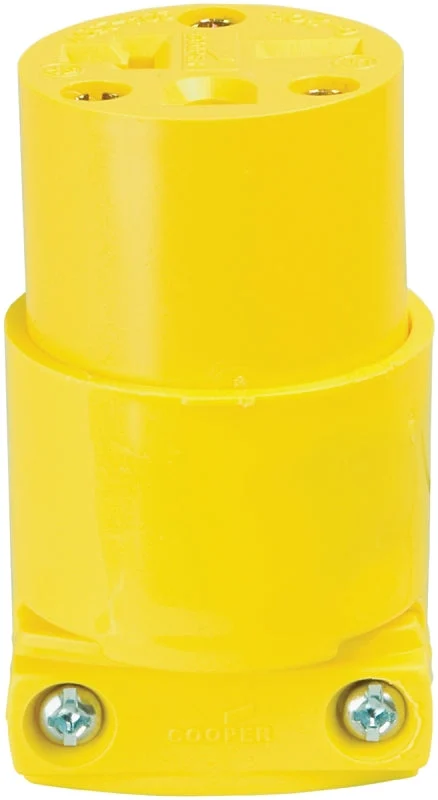

Commercial-grade, thermoplastic vinyl connectors feature solid brass plug blades are firmly embedded in body. Terminal screw clamps are designed to contain wire and prevent binding. Terminal screws backed out-ready for wiring. Terminals in individual chambers to positively insulate conductors. Vinyl angle plugs have eight possible positions for maximum convenience. Combination slot/Phillips head mounting and terminal screws ease installation with power screwdrivers.
Unit: EA
UPC: 032664333002
Model Number: 4229-BOX
Features
- Vinyl plugs and connectors resist chemical attack and are less brittle in extremely low temperatures
- Terminal screws backed out ready for wiring
- Terminals in individual chambers to positively insulate conductors
- Terminal screw clamps are designed to contain wire and prevent binding
- Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
Additional Information
- Cable/Wire Size: 18 to 12
- Color: Yellow
- Connection Type: Screw
- Current Rating: 20
- Dimensions: 1.54 in L x 1.54 in W x 2.61 in H
- Grounding Type: Grounded
- Material: Thermoplastic
- NEMA Configuration: NEMA 6-15R
- Number of Poles: 2
- Number Of Wires: 2
- Type: Straight
- Voltage Rating: 250
