Terminals in individual chambers to positively insulate conductors. Terminal screw clamps are designed to contain wire and prevent binding. Terminal screws backed out, ready for wiring. Nylon Kwiklok features patented twist-actuated internal cord clamp, reduces installation time. Meets all UL 498 requirements. Yellow color.
Unit: EA
UPC: 032664332609

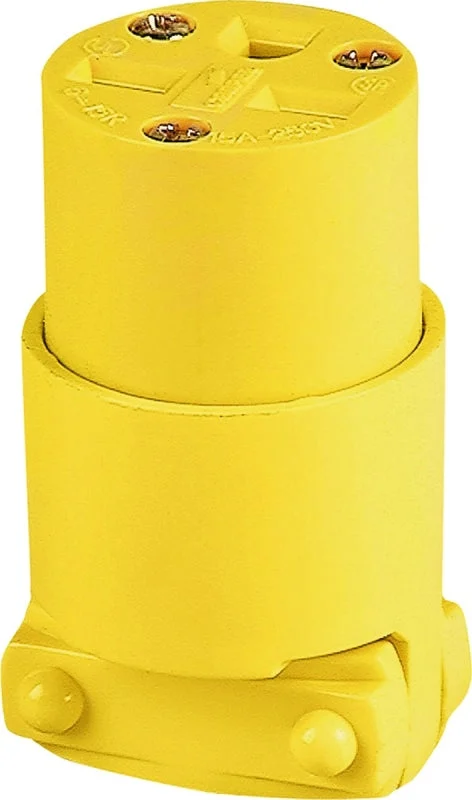

Model Number: 4227-BOX
Features
- Vinyl plugs and connectors resist chemical attack and are less brittle in extremely low temperatures
- Terminal screws backed out ready for wiring
- Terminals in individual chambers to positively insulate conductors
- Terminal screw clamps are designed to contain wire and prevent binding
- Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
Additional Information
- Cable/Wire Size: 1/4 to 21/32
- Color: Yellow
- Connection Type: Screw
- Current Rating: 15
- Dimensions: 2.61 in L x 1.35 in W
- Grounding Type: Grounded
- Material: Thermoplastic/Vinyl
- NEMA Configuration: NEMA 6-15
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 60
- Type: Straight
- Voltage Rating: 250
