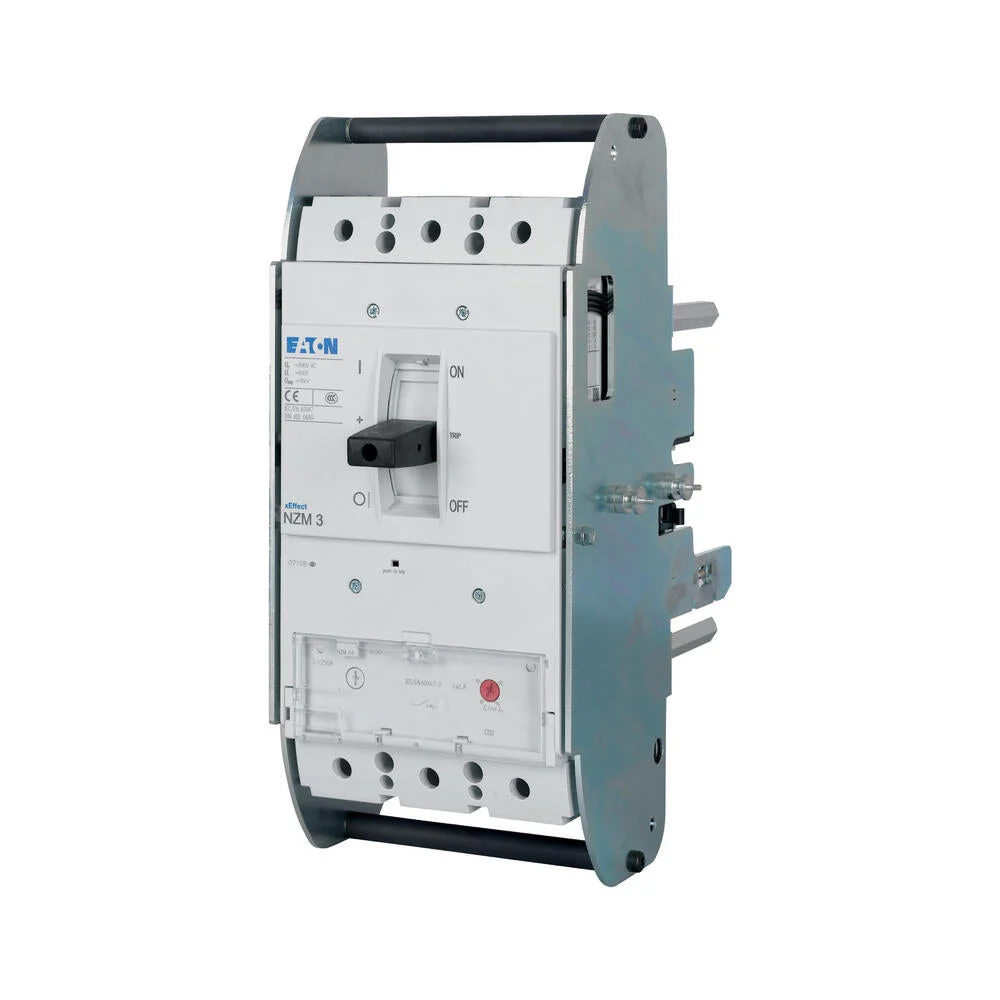

Eaton 3P 250A Circuit Breaker 36KA NZMC3-S250-AVE Withdrawable Unit – 113512

The Eaton Industries MCCB motor circuit breaker is a compact device, measuring 185x346x260mm, designed for mounting via insert form. It has a nominal continuous current rating of 250A and connects to the main circuit via a screw connection. Its magnetic interruption method ensures efficient operation, while its IP20 protection grade provides adequate resistance to everyday elements. Its operating voltage stands at 690V. The NZM..-S series circuit-breakers, which this device belongs to, comprises four compact sizes to cover all application cases for the IEC market. They are built to provide flexible mounting options due to their modular function groups. They are equipped with magnetic short-circuit release in conjunction with an overload relay, with an option for short-circuit release without overload trip. They satisfy all requirements of the switching category AC-3.

Specifications

Overload release current setting (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 8 A to 14 A
With thermal protection : No
Phase failure sensitive : No
Switch off technique : Magnetic
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 250
Rated operation power at AC-3, 230 V (kW) : 75
Rated operation power at AC-3, 400 V (kW) : 132
Type of electrical connection of main circuit : Screw connection
Type of control element : Rocker lever
Device construction : Built-in device slide-in technique (withdrawable)
With integrated auxiliary switch : No
With integrated under voltage release : No
Number of poles : 3
Rated short-circuit breaking capacity lcu at 400 V, AC (kA) : 22.5
Degree of protection (IP) : IP20
Height (mm) : 260
Width (mm) : 185
Depth (mm) : 346
