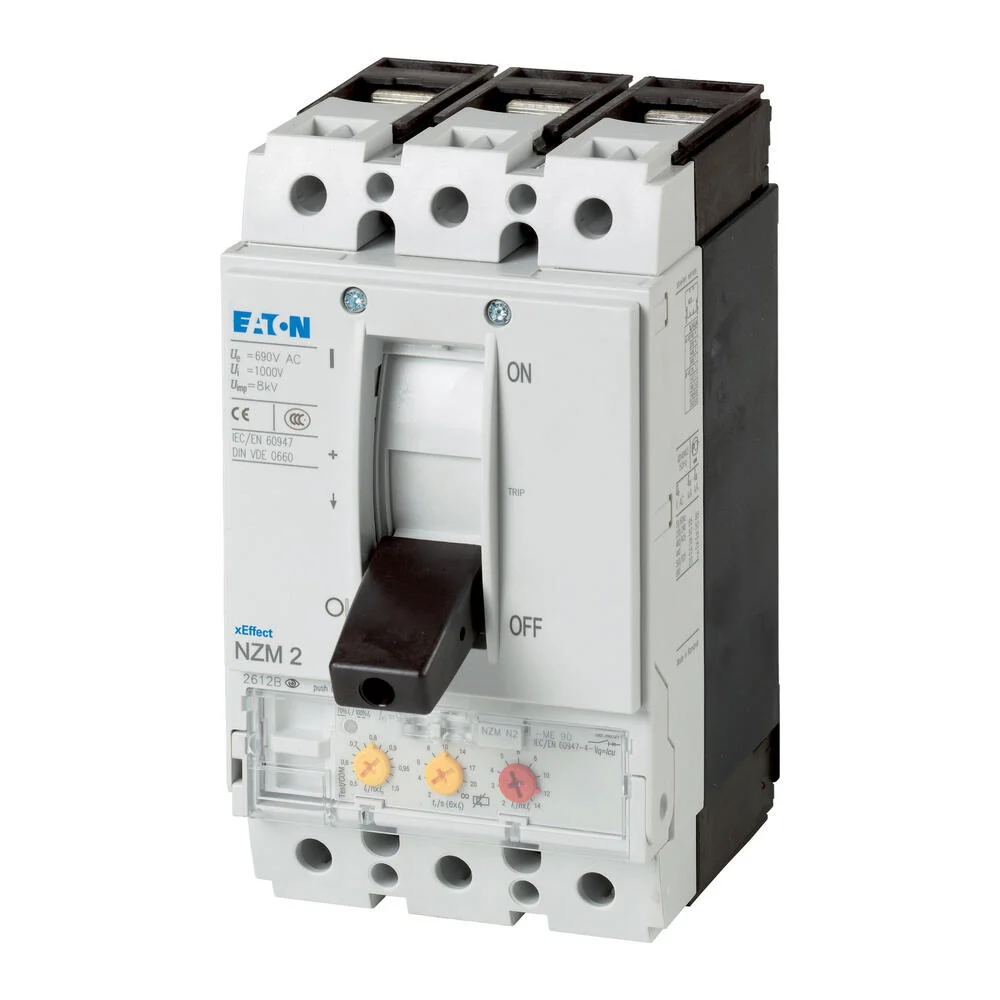

The Eaton Industries MCCB motor protection switch is a compact device with dimensions of 105x149x195mm. This device operates on a 200A nominal continuous current and features an adjustable overload protection range of 100 – 200A. It is designed as a built-in unit with a screw connection method for the main circuit. Also, it comes with an electronic shutdown technique. This circuit breaker from the NZM..-ME..NA series covers all applications with only four sizes. The device is fully flexible due to its modular function groups. It has an electronic release for motor protection with phase failure sensitivity and conforms to both UL/CSA and IEC regulations. This device is designed for use in motor circuits with a contactor and has adjustable overload releases Ir and a time delay setting to manage current peaks tr:2-20s at 6xIr.
Specifications
Overload release current setting (A) : 100 A to 200 A
Adjustment range undelayed short-circuit release (A) : 200 A to 2800 A
With thermal protection : Yes
Phase failure sensitive : Yes
Switch off technique : Electronic
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 200
Rated operation power at AC-3, 230 V (kW) : 55
Rated operation power at AC-3, 400 V (kW) : 110
Type of electrical connection of main circuit : Screw connection
Type of control element : Rocker lever
Device construction : Built-in device fixed built-in technique
With integrated auxiliary switch : No
With integrated under voltage release : No
Number of poles : 3
Rated short-circuit breaking capacity lcu at 400 V, AC (kA) : 130
Degree of protection (IP) : IP20
Height (mm) : 195
Width (mm) : 105
Depth (mm) : 149
