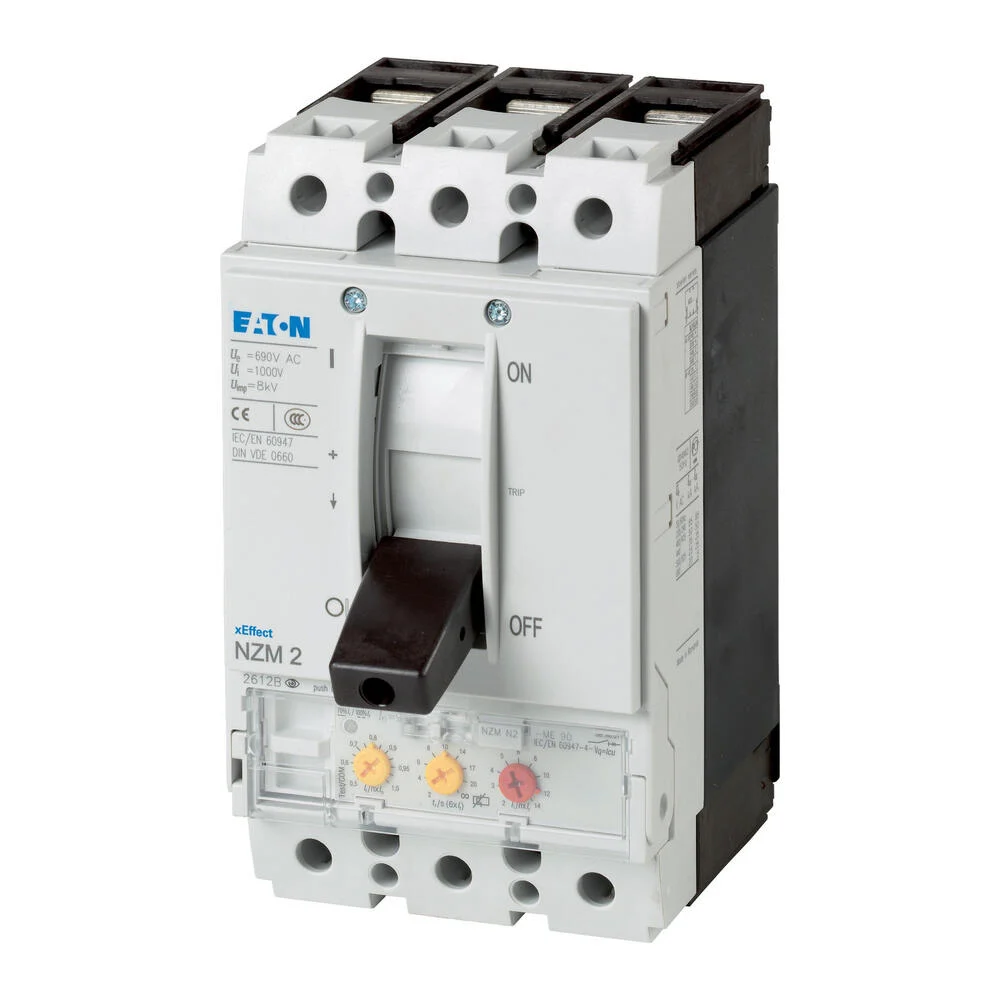

The Eaton Industries NZM M motor protection switch, with dimensions of 105x149x184mm, has an overload setting range of 110-220A and a nominal continuous current (Iu) of 220A. The device is designed for fixed installation, with a screw-based connection method for the main current circuit, and includes an electronic shutdown technology. The NZM..-ME series circuit-breakers are adaptable due to modular function groups, suitable for the IEC market and have an electronic release for motor protection with phase failure sensitivity. This includes IEC/EN 60947-4-1, IEC/EN 60947-2, r.m.s. value measurement, thermal memory, and an adjustable time delay setting to counter current peaks tr:2-20 at 6xIr and infinity, without overload release.
Specifications
Overload release current setting (A) : 110 A to 220 A
Adjustment range undelayed short-circuit release (A) : 220 A to 3080 A
With thermal protection : Yes
Phase failure sensitive : Yes
Switch off technique : Electronic
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 220
Rated operation power at AC-3, 230 V (kW) : 55
Rated operation power at AC-3, 400 V (kW) : 110
Type of electrical connection of main circuit : Screw connection
Type of control element : Rocker lever
Device construction : Built-in device fixed built-in technique
With integrated auxiliary switch : No
With integrated under voltage release : No
Number of poles : 3
Rated short-circuit breaking capacity lcu at 400 V, AC (kA) : 35
Degree of protection (IP) : IP20
Height (mm) : 184
Width (mm) : 105
Depth (mm) : 149
