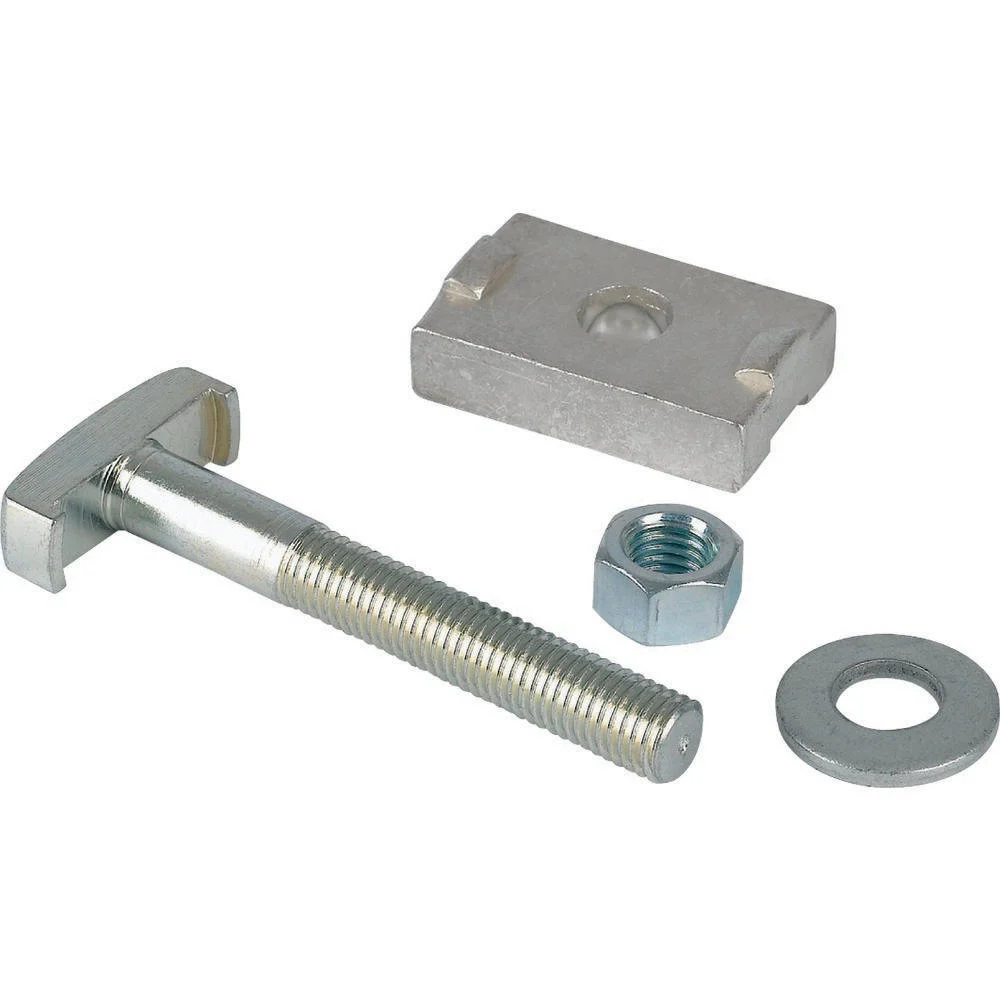

Eaton 1600A Rail System Clamp For Copper Strip K30X10L – 081977

The Eaton Industries XEnergy is a connection clamp designed for a busbar with a thickness of 10mm and adjustable width between 30 – 60mm. The clamp itself extends to a width of 17mm, making it suitable for connection with strip conductors. Maximum conductor cross-section it can accommodate is 1000mm² and it can handle a maximum nominal operating current (l) of up to 1600A.

Specifications

Busbar thickness (mm) : 10 mm to 10 mm
Busbar width (mm) : 30 mm to 60 mm
Suitable for : Flat rail
Width clamp (mm) : 17
Max. conductor cross section (mm²) : 1000
Max. rated operation current Ie (A) : 1600
Suitable for round conductor connection : No
Suitable for sector conductor connection : No
Suitable for strip conductor connection : Yes
