About this item
- Expand length is 1800mm/70.87inch ; Spring OD : 64mm ; Material Width : 19mm ; Material Thickness : 0.7mm
- Inner Mounting Type : Cylindrical Bore ; Outer Mounting Type : Ring
- This is the chrome housed spring that returns the quill to the top after you have completed drilling.Used to all kinds of vacuum cleaner coil spring, volume tube coil spring, safe coil spring and so on
- Chemical Blackening, the performance of the product form oxide film, isolate the air, prevent rust
- Pay attention to safe when installing springs. Do not loosen the wire of fixed springs!
Specification:
Material : Spring Steel (60Si2Mn)
Finish : Chemical Blackening
Material Thickness : 0.7mm/0.03inch
Material Width : 19mm/0.75inch
Spring OD : 64mm
Expand Length : 1800mm/70.87inch
Inner Mounting Type : Cylindrical Bore
Outer Mounting Type : Ring
Package Content :

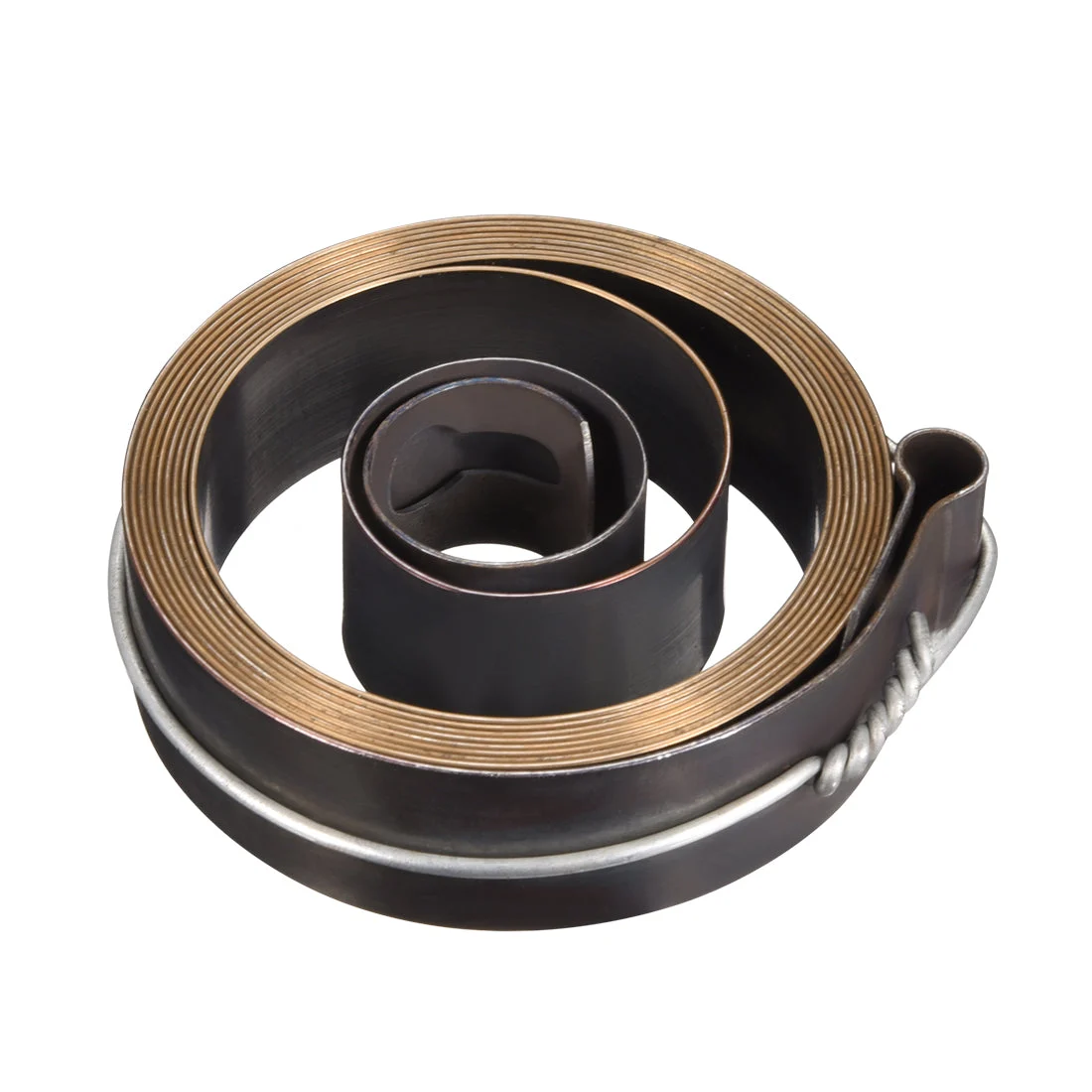

1 x Drill Press Spring
Description:
1.The drill press quill return spring is good replacement for many existing quill spring drill presses, this is the chrome housed spring that returns the quill to the top after you have completed drilling.Used to all kinds of vacuum cleaner coil spring, volume tube coil spring, safe coil spring and so on.
2.Chemical Blackening, the performance of the product form oxide film, isolate the air, prevent rust.
3.Pay attention to safe when installing springs. Do not loosen the wire of fixed springs! When installing, install the spring with a fixed wire directly into the spring , and the wire will slide out.
