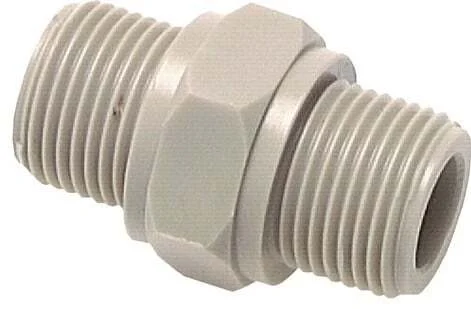

Double Nipple G1” PVDF 10bar (140.5psi) FDA 43mm Hex

This double nipple is made of PVDF (polyvinylidene fluoride) that makes it suitable for applications within a temperature range from -40 to 140 °C (-40 to 284 °F). The maximum operating pressure is 10 bar (140.5 psi). The body material is FDA approved.

Note: Never use plastic pipe fittings and pipes with compressed air or gas. For plastic-to-plastic threaded connections, it is not recommended to use tape or sealant containing PTFE.

Specifications

Thread : 1 inch
Connection type : Outer thread cylindrical BSPP-G
Material : Polyvinylidene fluoride (PVDF)
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : -40
Max temperature (°C) : 140
Approval : FDA
Length (mm) : 58
Material connection 1 : Polyvinylidene fluoride (PVDF)
Material connection 2 : Polyvinylidene fluoride (PVDF)
Shape : Straight
With drain : No
Wrench width (mm) : 43
