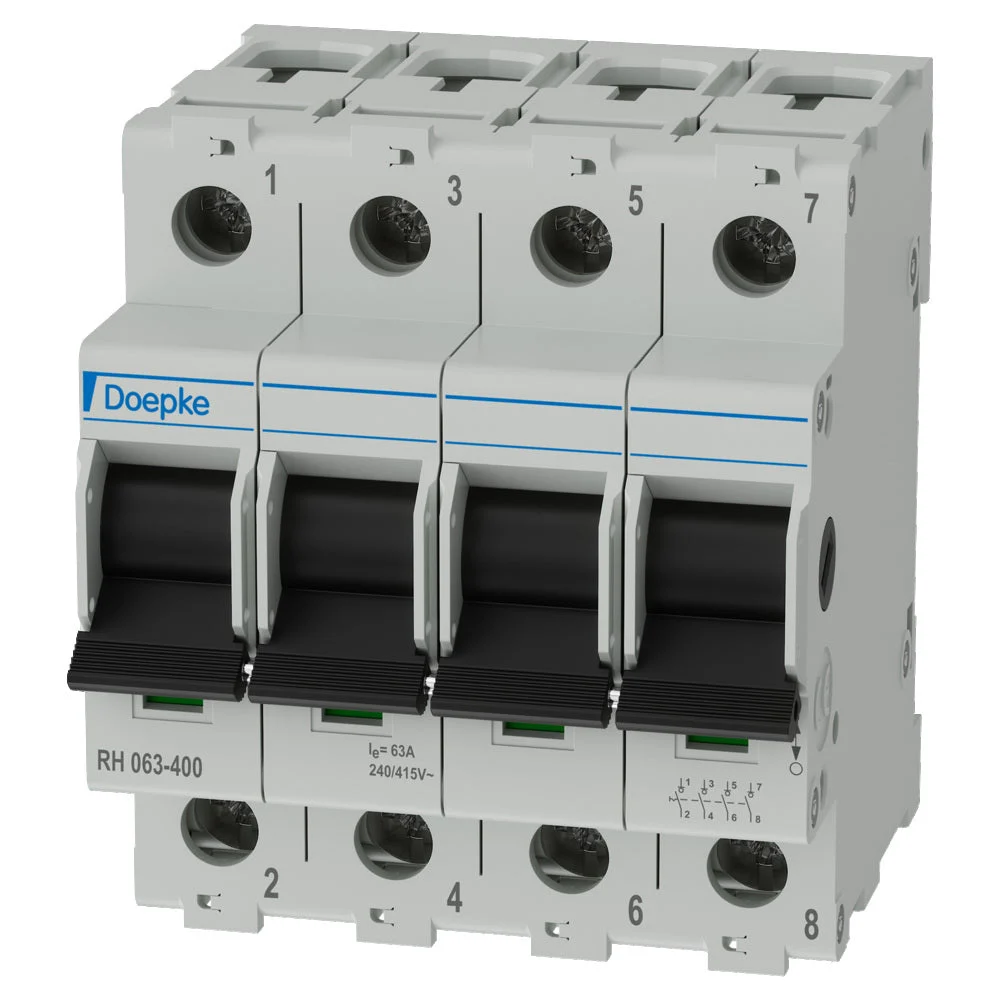

Doepke load breaker, 1 switch, max. Rated operating voltage Ue at A 415V, operating voltage (measurement voltage) 240 – 415V, rated continuous current Iu 63A, rated continuous current, AC-21, 400 V 63A, permitted short duration current Icw 12.5kA, switching capacity at 400 V 31kW.
Specifications
Version as main switch : No
Version as maintenance-/service switch : No
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 415
Rated operating voltage (V) : 240 V to 415 V
Rated permanent current Iu (A) : 63
Rated permanent current at AC-21, 400 V (A) : 63
Rated short-time withstand current lcw (kA) : 12.5
Switching power at 400 V (kW) : 31
Conditioned rated short-circuit current Iq (kA) : 12.5
Number of poles : 4
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Complete device in housing
Suitable for floor mounting : No
Suitable for front mounting 4-hole : No
Suitable for front mounting center : No
Suitable for distribution board installation : Yes
Suitable for intermediate mounting : No
Color control element : Black
Type of control element : Rocker lever
Interlockable : Yes
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP20
Degree of protection (NEMA) : 1
