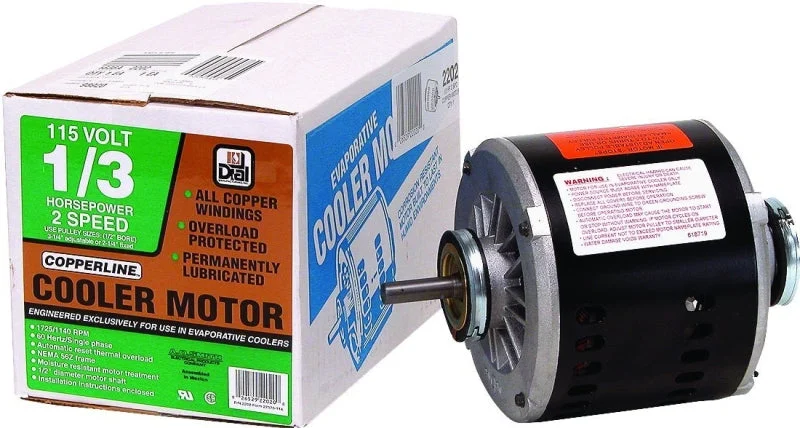

High efficiency, high-temperature insulation system. Capable of withstanding temperatures over 300 deg F. Reduces motor failures due to heat aging. Premium moisture-resistant insulation system. Styrenated epoxy coating on rotor prevents rust build-up and extends the life of the motor. 115 V, all copper windings, no base, 56Z frame. Auto-reset thermal overload protection. Great starting switch features. Heavy-duty bronze bearing. Mechanically and electrically approved for evaporative cooler applications. Label and instructions in English and Spanish. UL approved construction.
Unit: EA
UPC: 026529220200
Model Number: 2202
Features
- Residential replacement motor
- Heavy-duty bronze bearing
- High efficiency
- Auto-reset thermal overload protection
- High-temperature insulation system
- Great starting switch features
Additional Information
- Bearing Type: Ball
- Current Rating: 6.5/3.9 A
- Frequency Rating: 60 Hz
- HP Rating: 0.33 hp
- Material: Steel
- Number of Phases: 1
- Ring to Ring Center: 7-1/2 in
- Shaft Diameter: 1/2 in
- Shaft Rotation: Clockwise
- Speed Rating: 1725 1140 rpm
- Temperature Rating: 300 deg F
- Voltage Rating: 115 V
