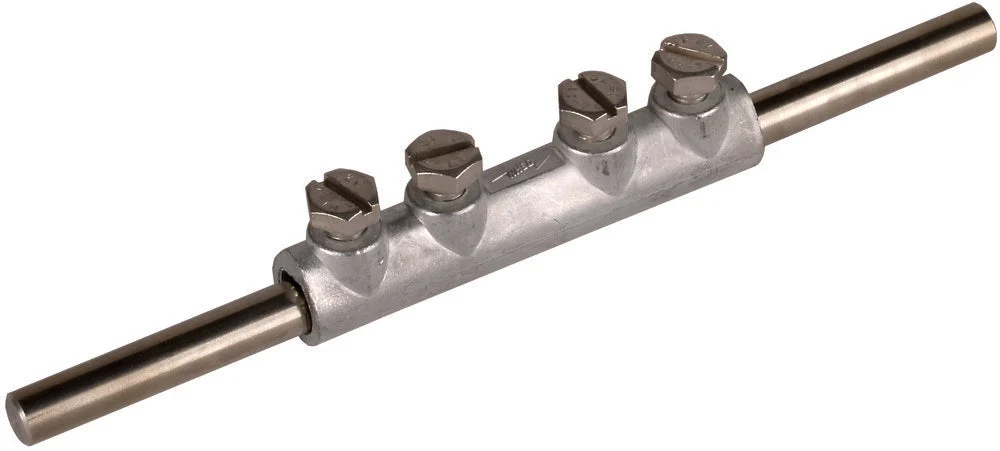

This item is a Dehn connector, specifically designed for lightning protection. It is made of pressure die-cast zinc. The connector type is a sleeve connection that allows the longitudinal connection of two round conductors. Each conductor has a diameter of 8mm. It does not come with surface protection, meaning it is untreated. For attachment, it utilizes hexagonal screws. Notably, it has a lightning current-carrying capacity of 100kA under a 10/350 µs impulse. This sleeve connector adheres to EN 62561-1 standards, and the installation involves the usage of four M6 screws.
Specifications
Type of connector : Sleeve connection
Diameter round conductor 1 (mm) : 8 mm to 8 mm
Diameter round conductor 2 (mm) : 8 mm to 8 mm
Material : Zinc die-cast
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
