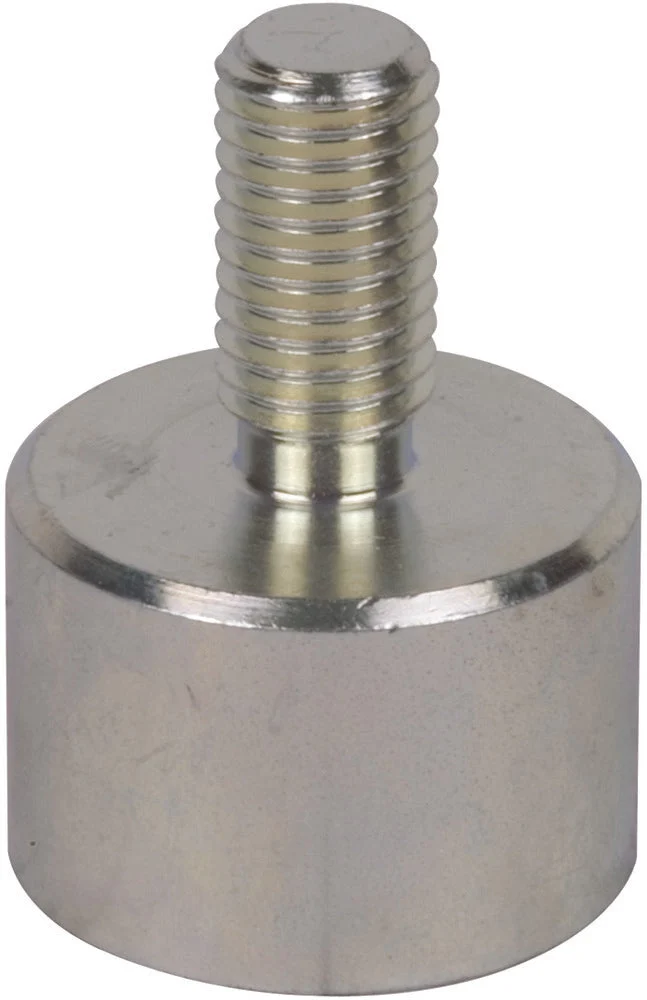

This is a weld-on connector with a maximum short circuit current of 42kA, straight body structure, and a 42mm anchor diameter. The connector features a threaded pin that can be used as a connection point to the earthing system. Moreover, it includes a provision for short-circuiting and is compliant with the EN/IEC 61230 (DIN VDE 0683-100) standards. The earth and short circuit wire bolts can be connected directly to the unit. It must be welded for secure installation.
Specifications
Max. short circuit current (kA) : 42
Construction type : Straight
Mounting method : Weldable
Connection of the earthing and short circuit device : Stud bolt
Diameter fixed point (mm) : 42
Suitable for round conductors : No
