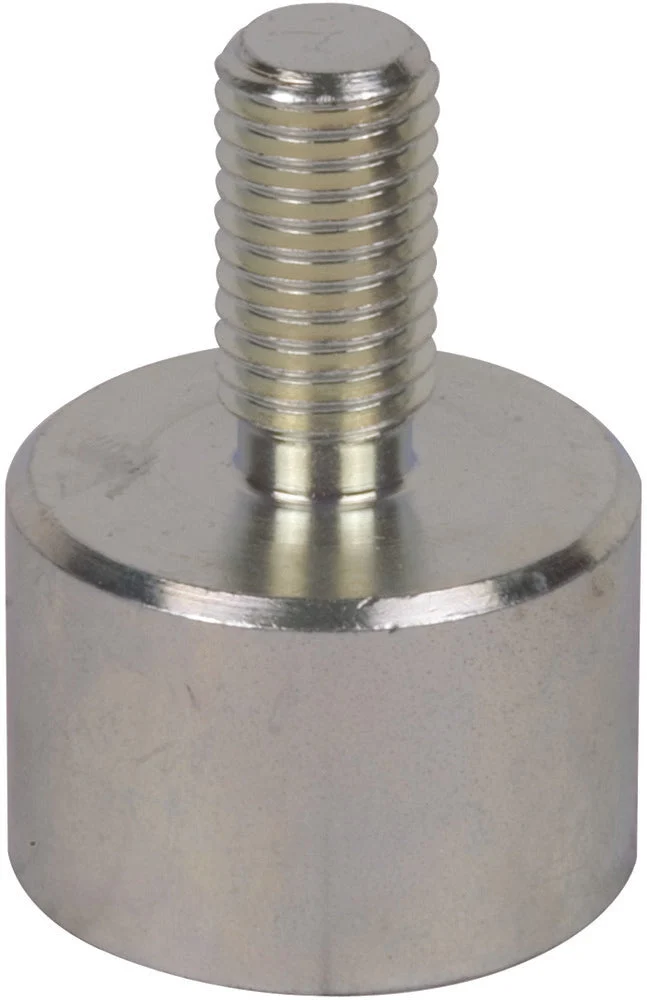

Dehn Welding-Type Connector Threaded Bolt M12x25mm St/GalZn Kit – 705501

The item is a weld-on connector, featuring a threaded pin which acts as the connection point to the earthing system, in compliance with EN/IEC 61230 (DIN VDE 0683-100) standards. It is designed to work effectively even with a maximum short-circuit current of 42kA. The product has a straight build type and is intended to be welded on. It comes with the provision of a connection to the earthing and short-circuit wire bolt. The connector has a point diameter of 34mm.

Specifications

Max. short circuit current (kA) : 42
Construction type : Straight
Mounting method : Weldable
Connection of the earthing and short circuit device : Stud bolt
Diameter fixed point (mm) : 34
Suitable for round conductors : No
