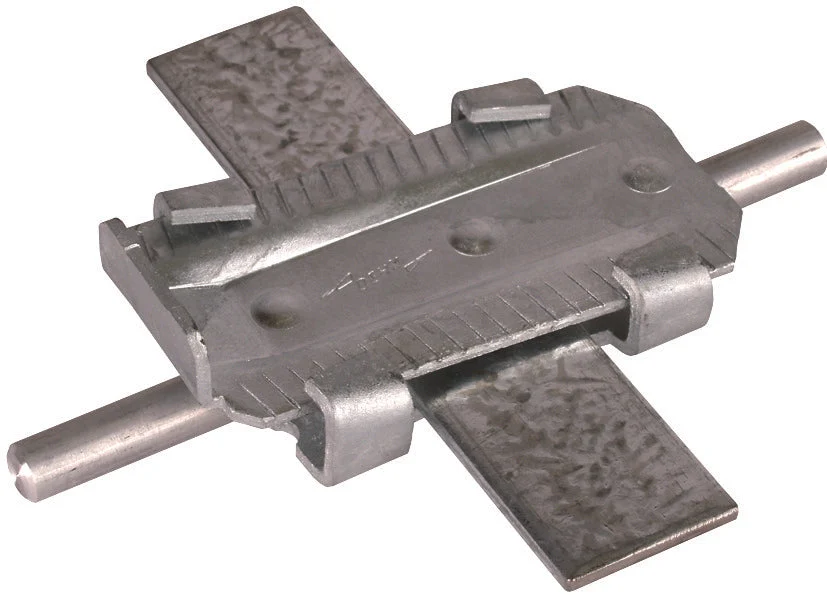

This is a Dehn connector designed for lightning protection made of steel, with the ability to facilitate T, cross, and parallel connections. The connector is designed to connect round conductors with a diameter of 10mm and flat conductors with a diameter of 30 – 40mm. The surface of the connector is thermally galvanized for protection. Additionally, it features a latch design by the wedge, which eliminates the need for screws during installation. It can also be used to connect conductors in the concrete foundation.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 10 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 40 mm
Width flat conductor 2 (mm) : 30 mm to 40 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Screw less
