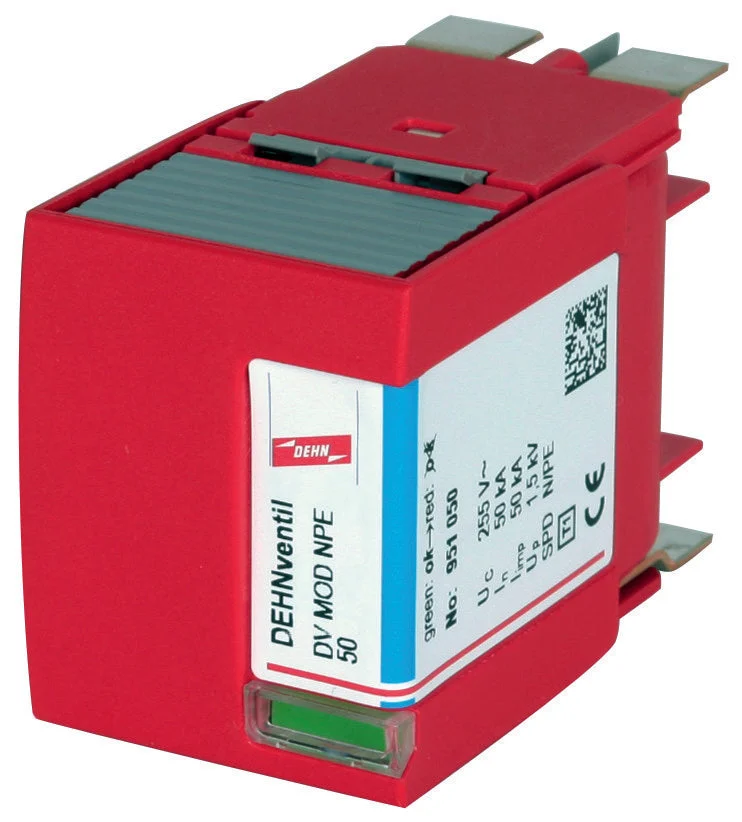

DEHN Ventil N-PE 50 Spark-Gap Based Protection Module – 951050

The Dehn DEHNventil is a combined surge arrester designed for power technology featuring a network form of TN-S and TT, with 4 poles. It provides lightning impulse current protection (10/350) up to 50kA with a maximum continuous AC voltage of 264V and a nominal AC voltage of 230V. The safety levels are rated at 1.5kV for general safety, L-N, and L-PE scenarios. The follow current extinguishing capacity is 100kA. It is based on a spark-gap protection module for the DEHNventil modular (type 1 according to EN 61643-11).

Specifications

System configuration DC : No
System configuration IT : No
System configuration TN : No
System configuration TN-C : No
System configuration TN-C-S : No
System configuration TN-S : Yes
System configuration TT : Yes
System configuration other : No
Lightning impulse current (10/350 µs) (kA) : 50
Max. continuous voltage AC (V) : 264
Nominal voltage AC (V) : 230
Voltage protection level (kV) : 1.5
Voltage protection level L-N (kV) : 1.5
Follow current extinguishing capability (kA) : 100
Specific energy (W/R) (kJ/Ohm) : 625
Mounting method : On basic element
Construction size : Other
Remote signalling : No
Signalling at the device : Optic
Test class : Type 1 + 2
Integrated backup fuse : No
Energy-coordinated protection effect with regard to the terminal equipment : Yes
Voltage switching spark gap technology : No
Overcurrent protected voltage tapping : No
