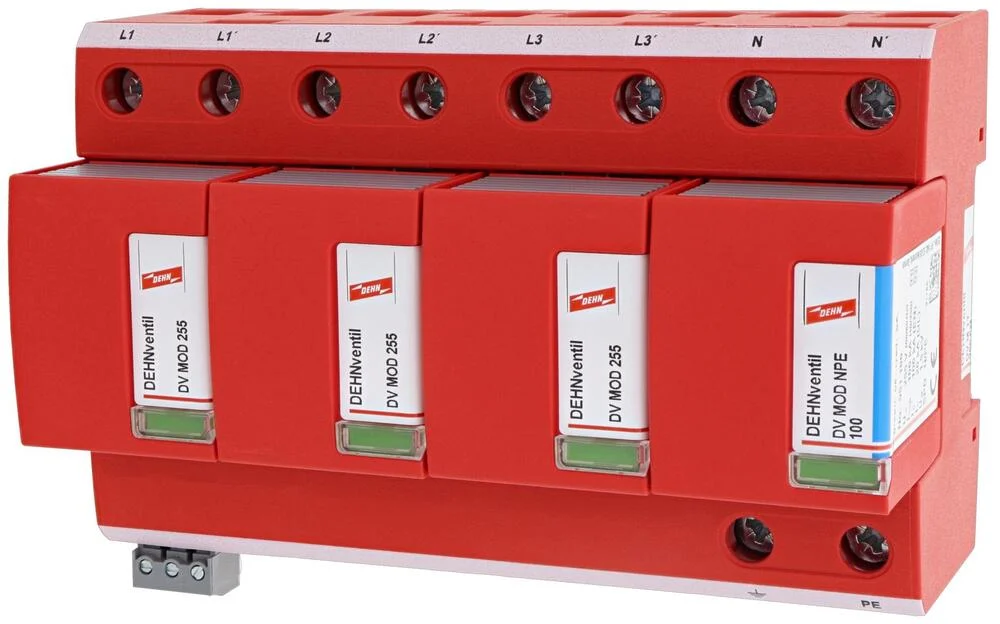

The DEHNventil is a modular, multipole combined lightning current and surge arrester that conforms to EN 61643-11 standards. It comprises a base part and pluggable protection modules. The device features RADAX Flow follow current limitation for maximum availability and can protect terminal equipment. Ideal for protecting low-voltage consumer installations against surges and even direct lightning strikes, it can be installed in accordance with the lightning protection zone concept at the boundaries from 0A – 2. Designed for TN-S and TT networks, it has 4 poles and can withstand a lightning impulse of 100kA (10/350). The maximum continuous AC voltage is 264V with a nominal AC voltage of 230V and DC voltage of 255V. The safety voltage level is 1.5kV for L-N, N-PE.
Specifications
System configuration DC : No
System configuration IT : No
System configuration TN : No
System configuration TN-C : No
System configuration TN-C-S : No
System configuration TN-S : Yes
System configuration TT : Yes
System configuration other : No
Number of poles : 4
Lightning impulse current (10/350 µs) (kA) : 100
Max. continuous voltage AC (V) : 264
Nominal voltage AC (V) : 230
Voltage protection level (kV) : 1.5
Voltage protection level L-N (kV) : 1.5
Voltage protection level N-PE (kV) : 1.5
Follow current extinguishing capability (kA) : 50
Specific energy (W/R) (kJ/Ohm) : 2500
Max. overcurrent protection device, parallel connection (fuse) (A) : 315
Max. overcurrent protection device, series connection (fuse) (A) : 125
Mounting method : DIN rail (top hat rail) 35 mm
Construction size : 8 modular spacing
Max. conductor cross section solid (solid, stranded) (mm²) : 50
Max. conductor cross section flexible (fine-strand) (mm²) : 35
Remote signalling : Yes
Signalling at the device : Optic
Test class : Type 1 + 2
Integrated backup fuse : No
Energy-coordinated protection effect with regard to the terminal equipment : Yes
Voltage switching spark gap technology : Yes
Overcurrent protected voltage tapping : No
Degree of protection (IP) : IP20
