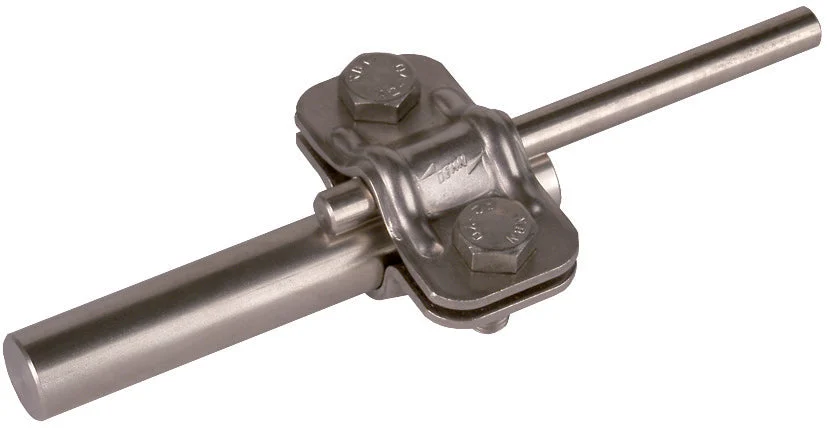

The UNI disconnecting clamp adheres to the EN 62561-1 standard. It is designed for the purpose of linking down conductors with the earth’s entry without using any intermediate plate for the earth entry rods. The clamp can be applied to earth entry rods with a diameter of 16mm. Moreover, it can accommodate a round conductor with a diameter ranging between 1.8mm to 10mm for the first conductor and up to 16mm for the second conductor.
Specifications
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Diameter round conductor 2 (mm) : 16 mm to 16 mm
Material : Stainless steel V2A
Surface protection : Untreated
Bimetal connector : No
