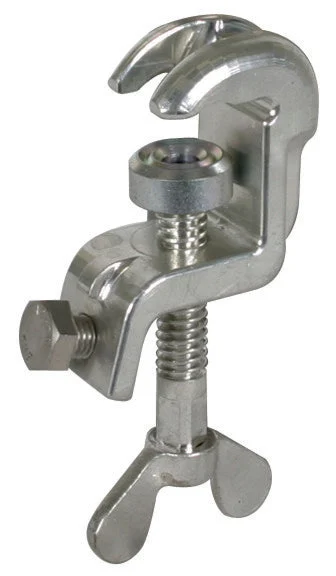

Dehn Universal Earthing Clamp K 20/25 Fl 20 T 15mm With Wing Screw – 774034

The Dehn earthing clamp is designed as a universal connection element for earth-side applications. It can withstand a maximum short-circuit current of 33.5kA and supports a wire cross-section of 16 – 120mm². The clamp offers a clamping range of 20mm and is suitable for connection to a fixed ball point of 25mm. It is designed with an anti-rotation feature and can be used to connect the earthing cable to fixed ball points, T pins, round and flat conductors. It is compliant with EN/IEC 61230 (DIN VDE 0683-100).

Specifications

Max. short circuit current (kA) : 33.5
For wire cross section (mm²) : 16 mm² to 120 mm²
Clamping range (mm) : 20 mm to 20 mm
Connection type : Fixed ball point 25 mm
Anti-rotation protection : Yes
Application : Earth-side
