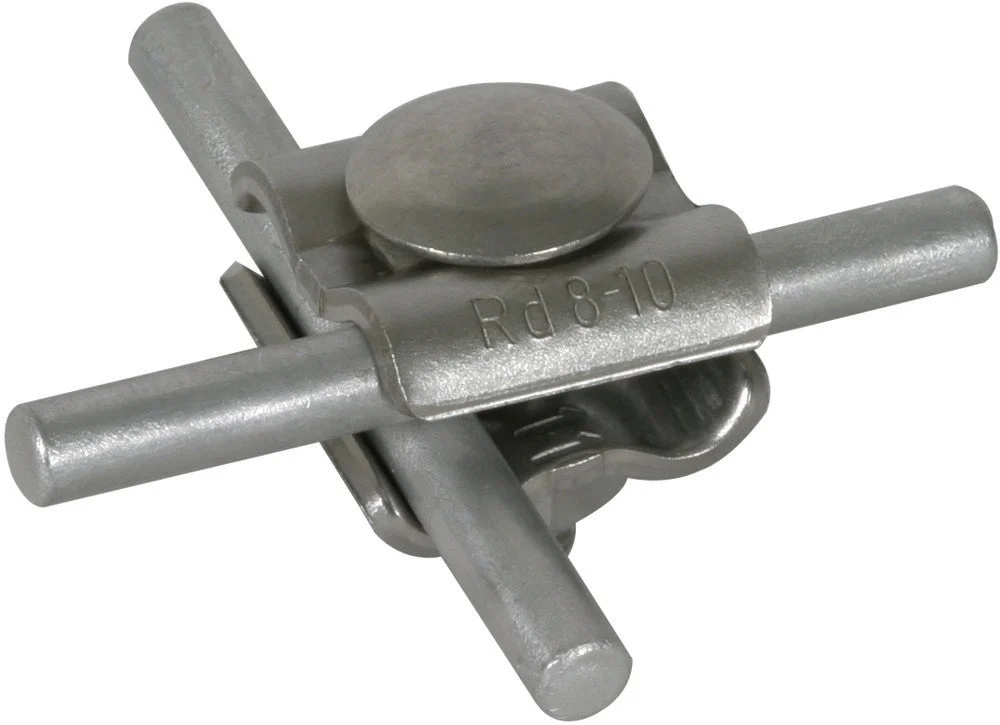

This is a universal connector made of stainless steel 304, also known as V2A, and built for lightning protection. It adheres to EN 62561-1 standards and designed to connect round conductors in cross, T, and parallel arrangements and for twin conductor connection. Compatible with a round conductor diameter between 8-10mm, it uses a flat head screw for fixture. This connector does not have any surface protection, implying it is untreated. It has a lightning carrying capacity of 10/350 µs 50kA.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Material : Stainless steel V2A
Surface protection : Untreated
Type of fastening screws : Flat round screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 50
