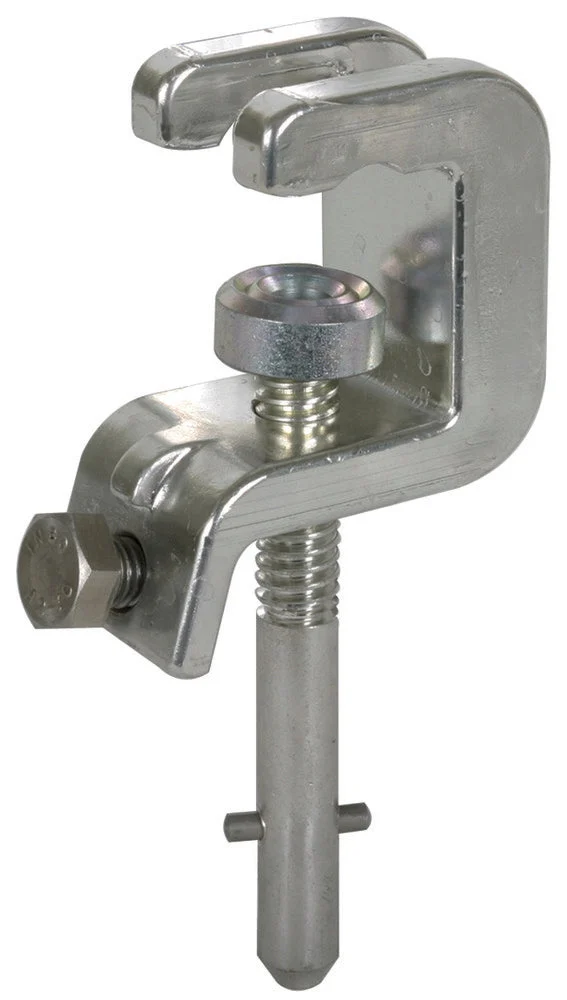

This is a universal clamp with a T pin shaft designed for use as a phase or earth connecting element, in compliance with EN/IEC 61230 (DIN VDE 0683-100) standards. Made for fixed ball points and fixed T points, it can also handle flat and round conductors, and is meant for attachment to earthing and short-circuiting devices. It comes with a PK 1 cable lug and contains a rotating protection feature. The maximum short-circuit current capacity is 33.5kA. The clamp is designed for a cable cross-section of 16 – 120mm², offers a clamping range of 30mm and has an attachment method for the operating rod spindle with a transverse pin.
Specifications
Max. short circuit current (kA) : 33.5
For wire cross section (mm²) : 16 mm² to 120 mm²
Clamping range (mm) : 30 mm to 30 mm
Connection type : Fixed ball point 25 mm
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
