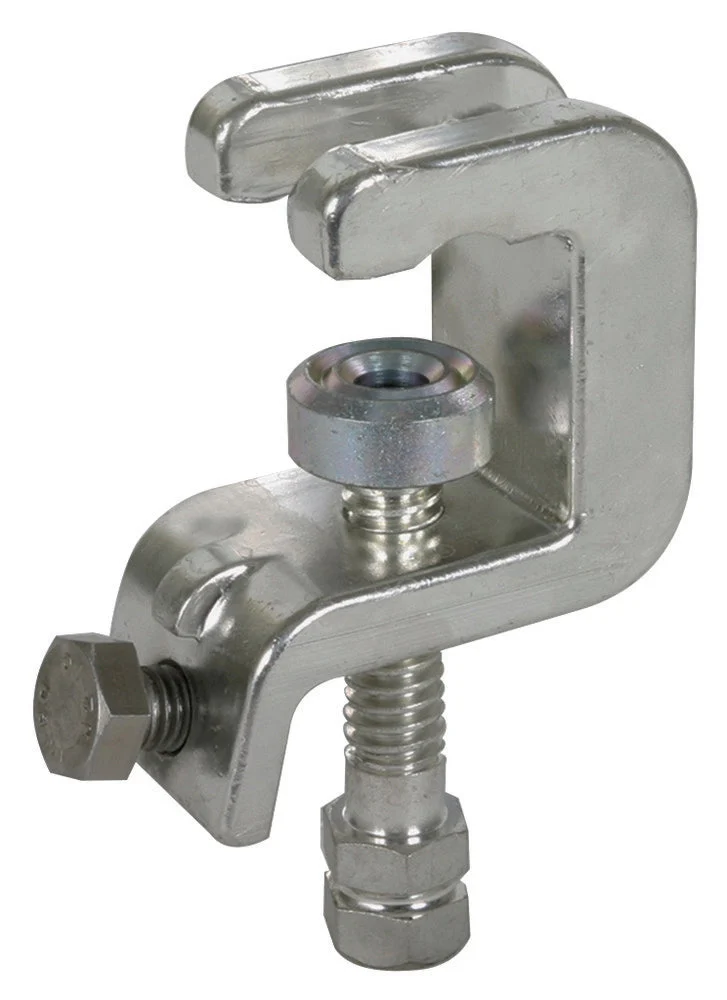

Dehn Universal Clamp Range 25/30mm UK30SK Accessories – 773130

This is a universal clamp with a hexagon shaft, designed for use as a phase or earth connecting element in accordance with EN/IEC 61230 (DIN VDE 0683- 100). It can be utilised with fixed ball points, fixed T points, as well as flat and round conductors. The clamp is suitable for attaching to earthing and short-circuiting devices and comes with a PK1 anti-rotation element. It is designed to handle a maximum short-circuit current of 33.5kA, and works with wire cross-sections ranging from 16 to 120mm². Its clamping range is up to 30mm, and it offers torque protection.

Specifications

Max. short circuit current (kA) : 33.5
For wire cross section (mm²) : 16 mm² to 120 mm²
Clamping range (mm) : 30 mm to 30 mm
Connection type : Fixed ball point 25 mm
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with hexagon
Application : Phase-side
