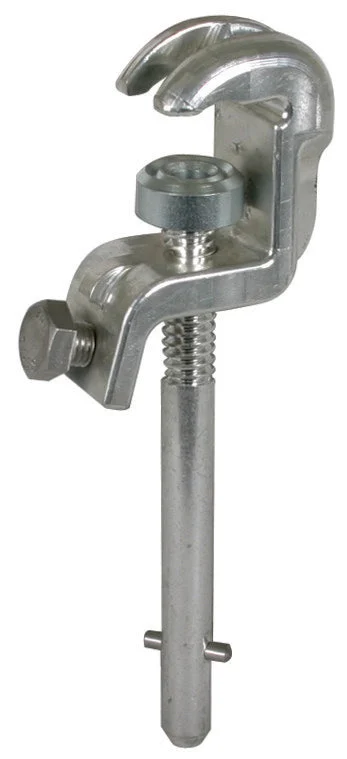

Dehn Universal Clamp D 20/25mm T 15mm With Long T Pin Shaft – 773236

This is a universal clamp with a long T pin shaft designed for use as a phase or earth connecting element. The element complies with EN/IEC 61230 (DIN VDE 0683-100) and is suitable for fixed ball points and T points, as well as for flat and round conductors. It is used for connecting phase cables of earthing and short-circuiting devices. It has a maximum short-circuit current of 33.5kA and accommodates a wire cross-section of 16 – 120mm². Clamp range is 20mm and the ball affixing method is 25mm. It also features PK1 anti-rotation element and the control rod spindle attachment with a transverse pin.

Specifications

Max. short circuit current (kA) : 33.5
For wire cross section (mm²) : 16 mm² to 120 mm²
Clamping range (mm) : 20 mm to 20 mm
Connection type : Fixed ball point 25 mm
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
