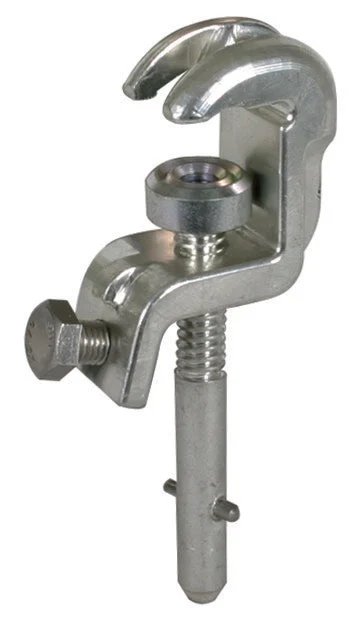

This technical item is a Universal Clamp with a T pin shaft. It is designed for use as a phase or earth connecting element in conformity with EN/IEC 61230 (DIN VDE 0683-100). Suitable for fixed ball points and T points, as well as flat and round conductors. Additionally, it can be attached to earthing and short-circuiting devices. The clamp features a PK1 anti-rotation element and a spindle with transverse pin for control rod attachment. It tolerates a maximum short circuit current of 33.5kA and accommodates a wire cross-section of 16 – 120mm². The clamp range is 20mm, with a 25mm ball locking point.
Specifications
Max. short circuit current (kA) : 33.5
For wire cross section (mm²) : 16 mm² to 120 mm²
Clamping range (mm) : 20 mm to 20 mm
Connection type : Fixed ball point 25 mm
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
