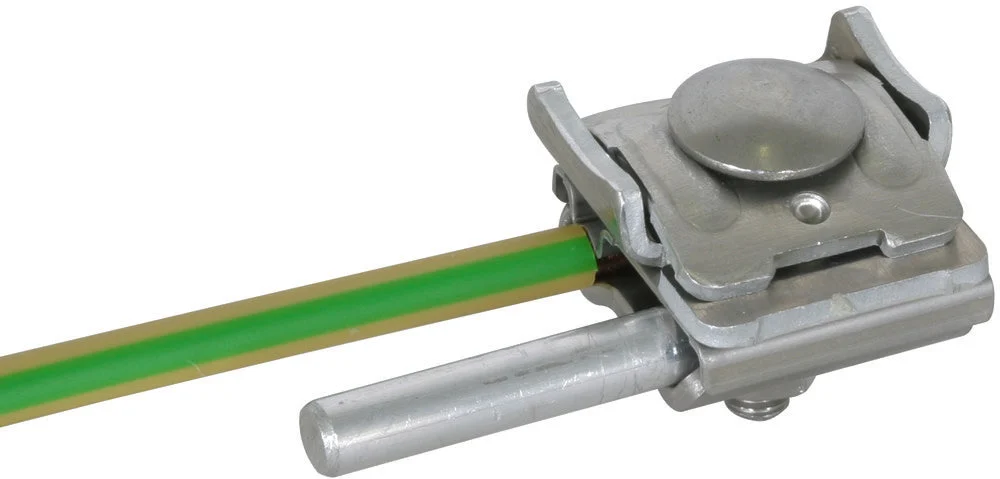

The UNI saddle clamp is in accordance with EN 62561-1 standards and is designed for the integration of mounting systems, such as PV installations, into functional equipotential bonding or earthing and lightning protection equipotential bonding aligned with IEC/EN 62305-3. Its contact plate is made from stainless steel and allows for the connection of various conductor materials like copper, aluminum, steel, and stainless steel, to regular mounting systems without the risk of contact corrosion. This type has an M8 hammer-head bolt, a self-locking nut, and a double clamp suitable for feed-through wiring of profiles.
Specifications
Type of connector : Rebate clamp
Suitable for diameter round conductor (mm) : 8 mm to 10 mm
Clamping range (mm) : 0.7 mm to 8 mm
Material : Aluminum
Surface protection : Untreated
Type of fastening screws : Flat round screw
