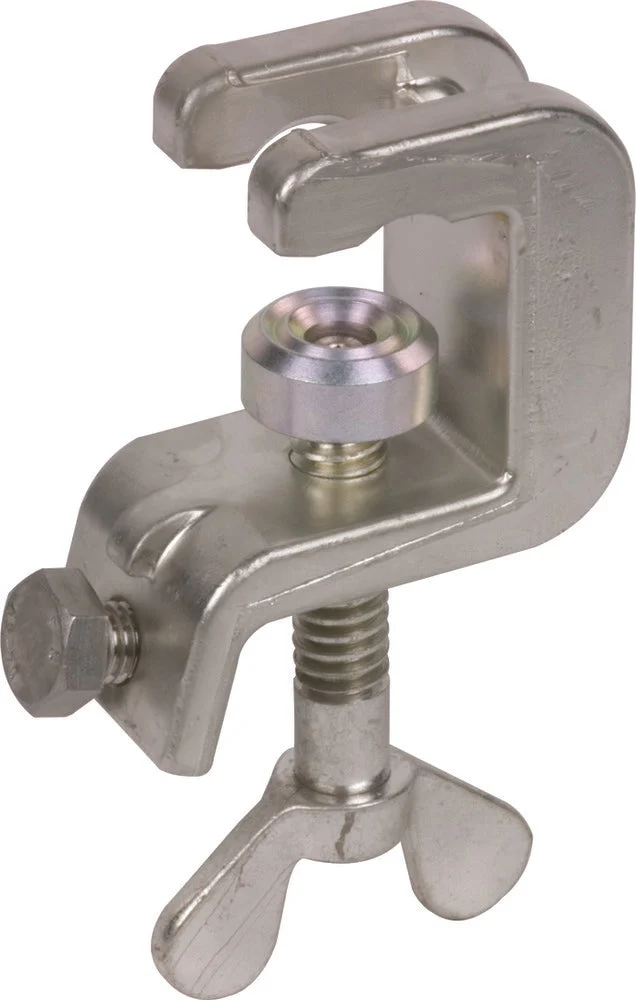

This is a universal earthing clamp designed to connect the earthing cable to fixed ball points, T pins, round and flat conductors according to EN/IEC 61230 (DIN VDE 0683-100). The clamp is equipped with a wing bolt for easy connection. Suitable for wire cross-sections of 16 to 120mm², it has a clamping range of 30mm and a connection method of a 25mm fixed ball point. Its maximum short-circuit current is 33.5kA. To ensure safety and efficiency, the clamp features an anti-rotation element (PK1). Useful for earth-side applications.
Specifications
Max. short circuit current (kA) : 33.5
For wire cross section (mm²) : 16 mm² to 120 mm²
Clamping range (mm) : 30 mm to 30 mm
Connection type : Fixed ball point 25 mm
Anti-rotation protection : Yes
Application : Earth-side
