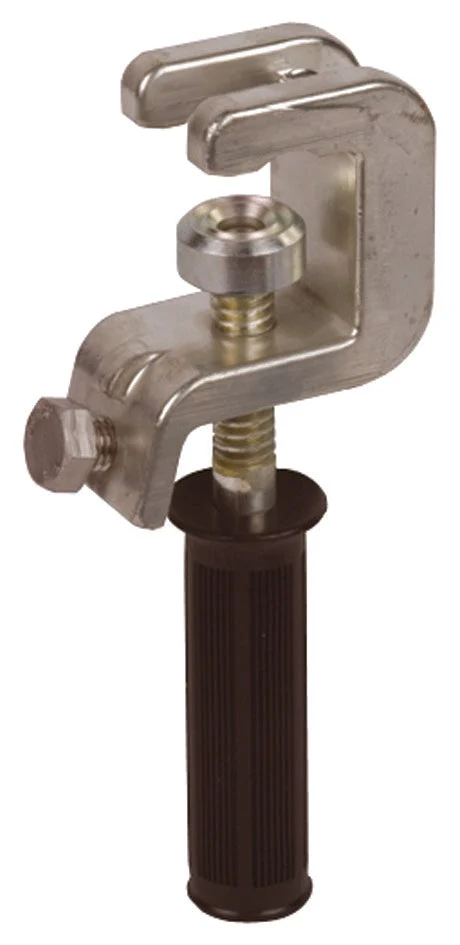

This is a universal earthing clamp with a plastic handle designed for connecting an earthing cable to fixed ball points, T pins, and round and flat conductors. It meets the standards set by EN/IEC 61230 (DIN VDE 0683-100). The clamp includes a Dehn connection element with a maximum short circuit current of 33.5kA. Suitable for wire cross sections ranging from 16 to 120mm², it also has a clamping range of 30mm and a connection point of 25mm. The device features an anti-rotation element and twist resistance for secure connection. It’s mainly used on the earthing side.
Specifications
Max. short circuit current (kA) : 33.5
For wire cross section (mm²) : 16 mm² to 120 mm²
Clamping range (mm) : 30 mm to 30 mm
Connection type : Fixed ball point 25 mm
Anti-rotation protection : Yes
Application : Earth-side
