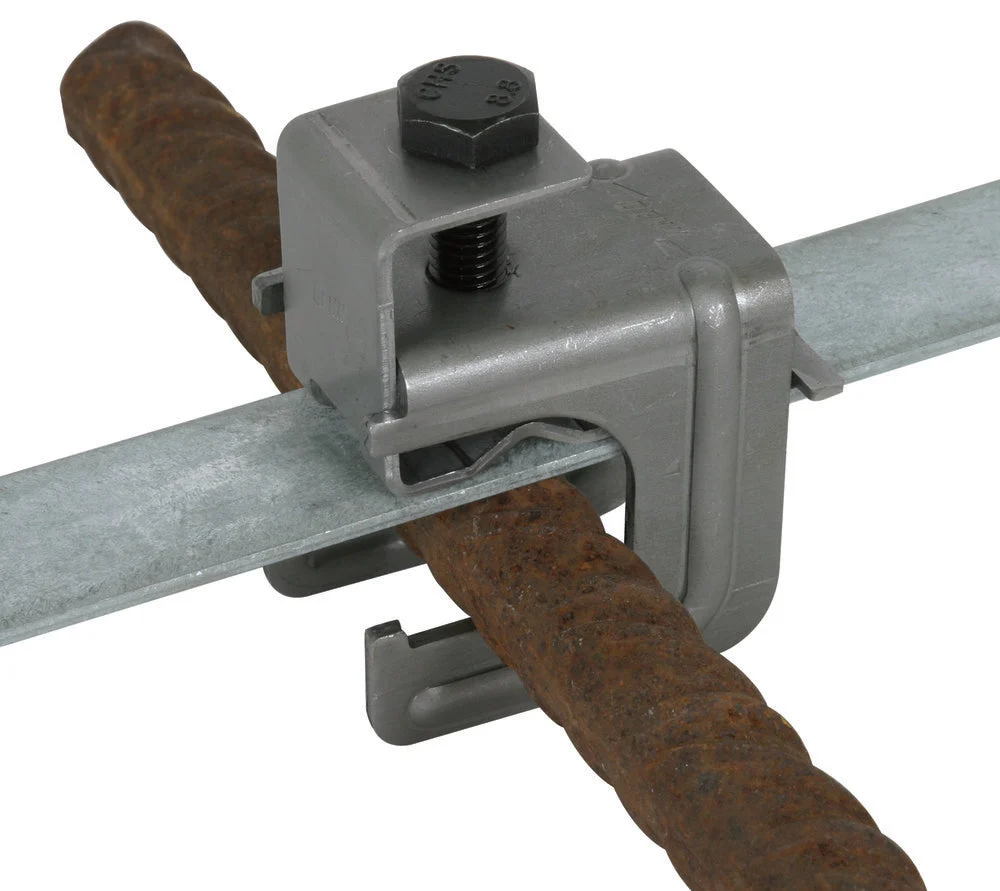

This is a Dehn U connector designed for lightning protection and made of steel. It is particularly used for connecting round and flat conductors in the concrete foundation or reinforcing steel meshes. The connector supports T, cross and parallel connections while abiding by the EN 62561-1 standards. Specifications include a round conductor diameter of 1 to 6 – 20mm, a flat conductor diameter of 1 30mm, a round conductor diameter of 2 8 – 10mm, and a flat conductor diameter of 2 30mm. Please note that it does not come with surface protection and is untreated.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 6 mm to 20 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Steel
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 8.4
