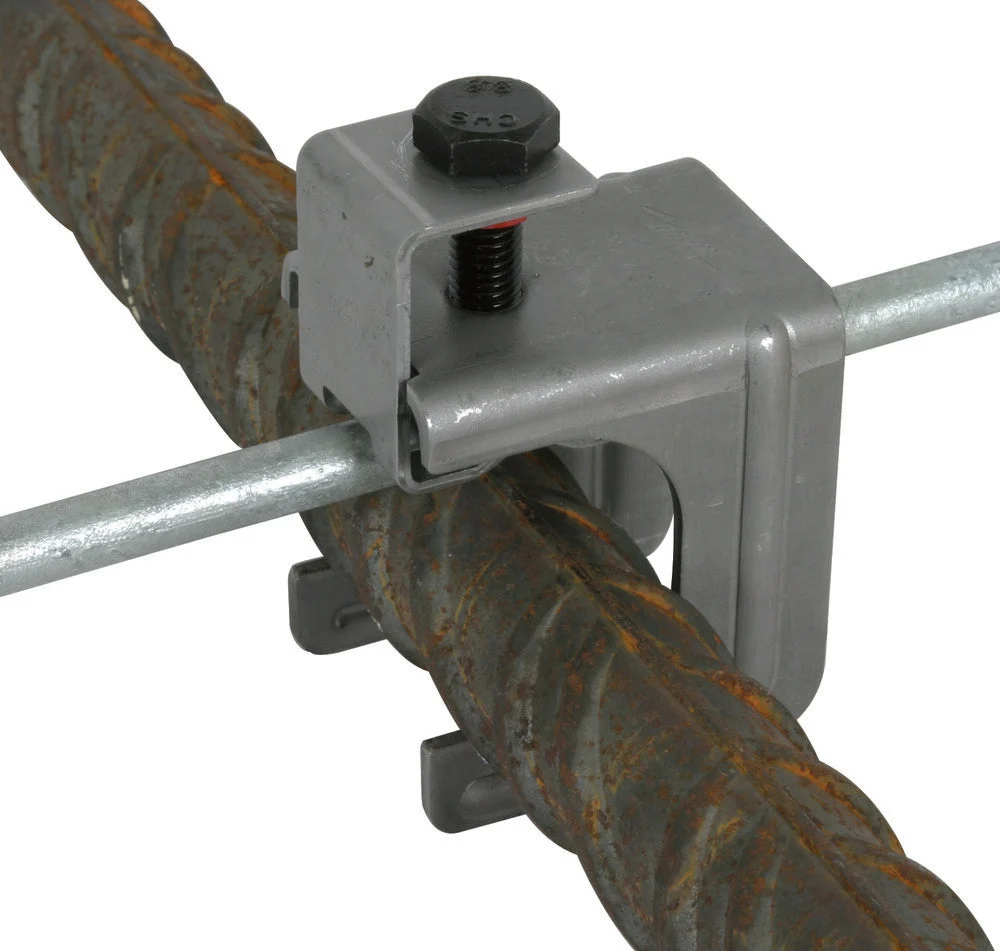

The MAXI connecting clamp with thrust bracket is compliant with EN 62561-1. It is designed for the connection of round and flat conductors within a concrete foundation or with reinforcing steel meshes and reinforcements. Suitable for T, cross and parallel connections, it can accommodate a round conductor with a diameter of 20 – 32mm, a flat conductor with a diameter of 40mm, and a second round conductor with a diameter of 8 – 10mm. The clamp does not have surface protection and utilizes a hexagonal screw for fastening purposes. It is made of steel and is essential for effective lightning protection.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 20 mm to 32 mm
Width flat conductor 1 (mm) : 40 mm to 40 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Material : Steel
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 14
