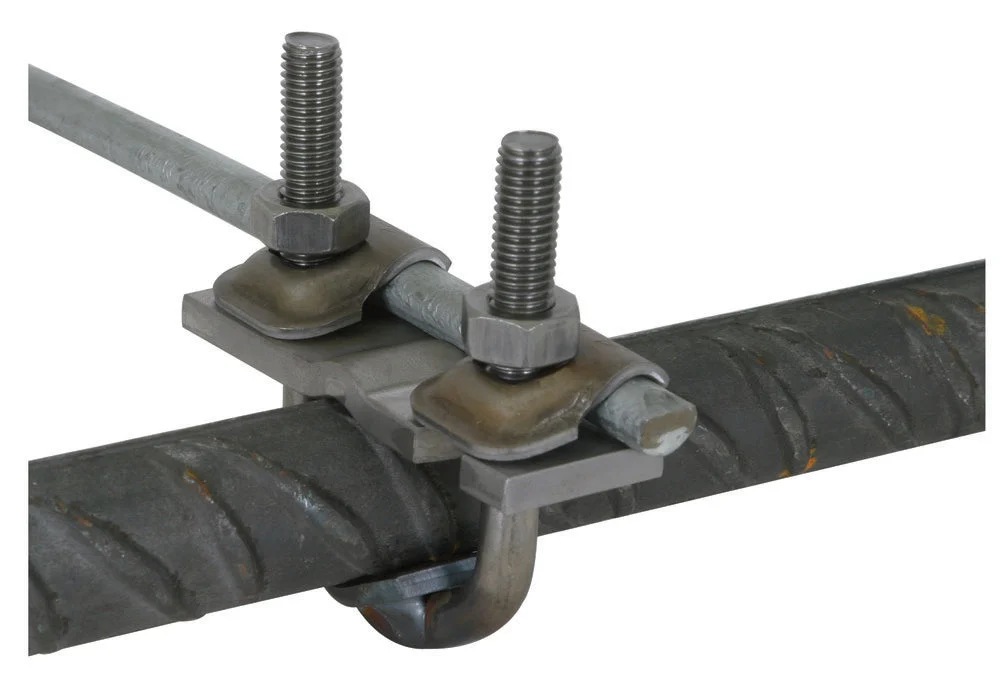

The U-bolt clamp is compliant with EN 62561-1, designed for connecting reinforcements. It includes a clamping piece for the cross-connection of round conductors or for fixed earthing terminals, with simultaneous fixation in the formwork. It is specifically created for large diameters; the clamp can accommodate a round conductor 1 diameter ranging from 16 – 48mm, a flat conductor 1 diameter from 30 – 40mm, and a round conductor 2 diameter from 6 – 10mm. The U-bolt clamp does not feature any surface protection measures as it is untreated, and possesses a unique type of fixing screws.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 16 mm to 48 mm
Width flat conductor 1 (mm) : 30 mm to 40 mm
Diameter round conductor 2 (mm) : 6 mm to 10 mm
Material : Steel
Surface protection : Untreated
Type of fastening screws : Other
Lightning current load-bearing capacity (10/350 µs) (kA) : 50
