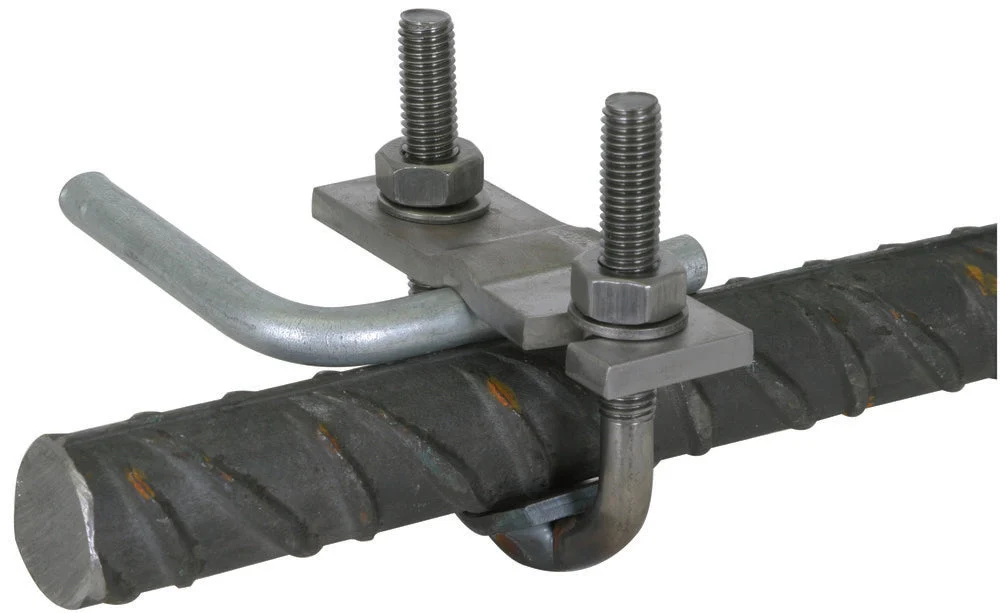

The Dehn U clamp for lightning protection is designed to connect reinforcing steel with round or flat conductors. It offers a type of connector that has a parallel plug, capable of accommodating large diameters ranging from 16 to 48mm for the round conductor and 30mm for the flat conductor. The second round conductor can handle diameters from 6 to 10mm. Despite offering no surface protection (untreated), it makes use of a different type of fastening screws. It is compliant with EN 62561-1 standards.
Specifications
Type of connector : Parallel connector
Diameter round conductor 1 (mm) : 16 mm to 48 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 6 mm to 10 mm
Material : Steel
Surface protection : Untreated
Type of fastening screws : Other
Lightning current load-bearing capacity (10/350 µs) (kA) : 16
