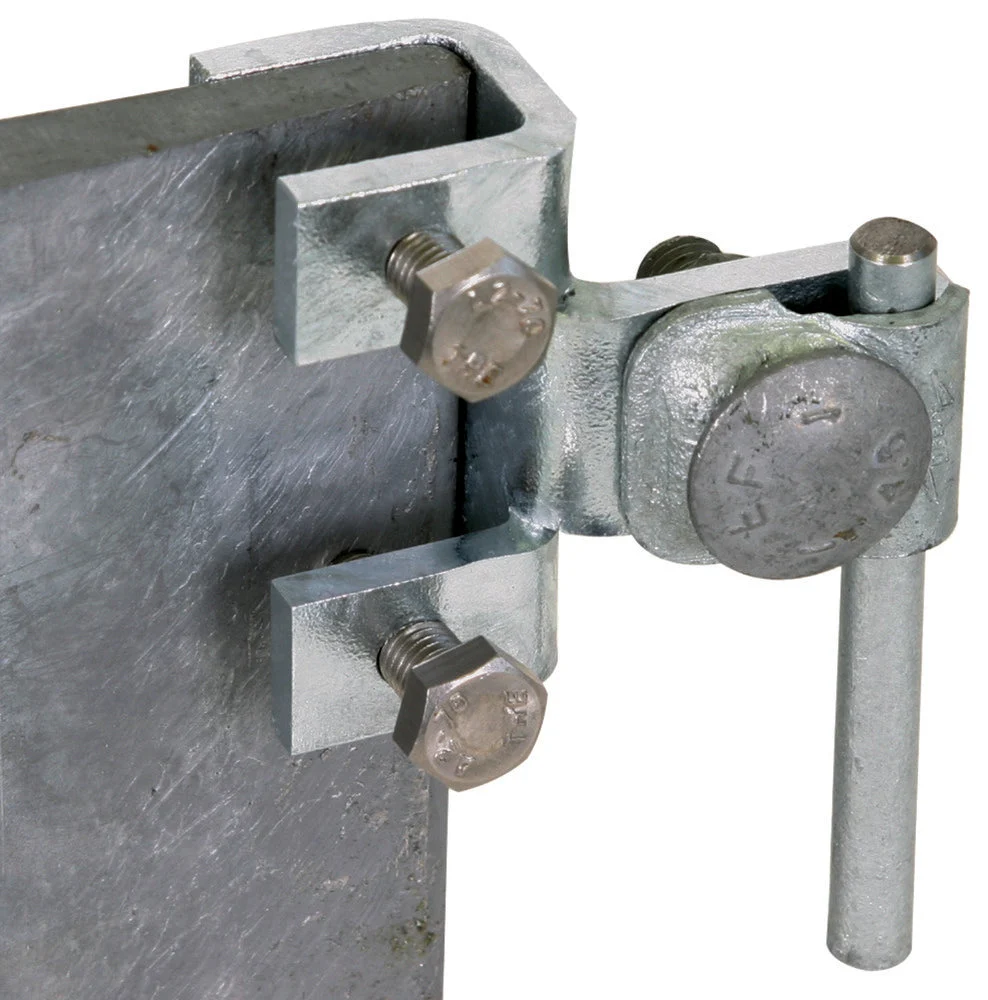

Dehn Terminal Connector For Steel Structures 18-35mm – 372140

This is a connection clamp designed according to EN 62561-1 standards that is used for linking to steel girders and steel constructions. Built in a vertical design, it comes with a clamping piece that can accommodate longitudinal or cross connections. It is specifically used for lightning protection systems, ensuring safety and reliability in structural applications.

Specifications

Type of connector : Connection terminal
Suitable for diameter round conductor (mm) : 6 mm to 10 mm
Clamping range (mm) : 18 mm to 35 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Hexagon screw
